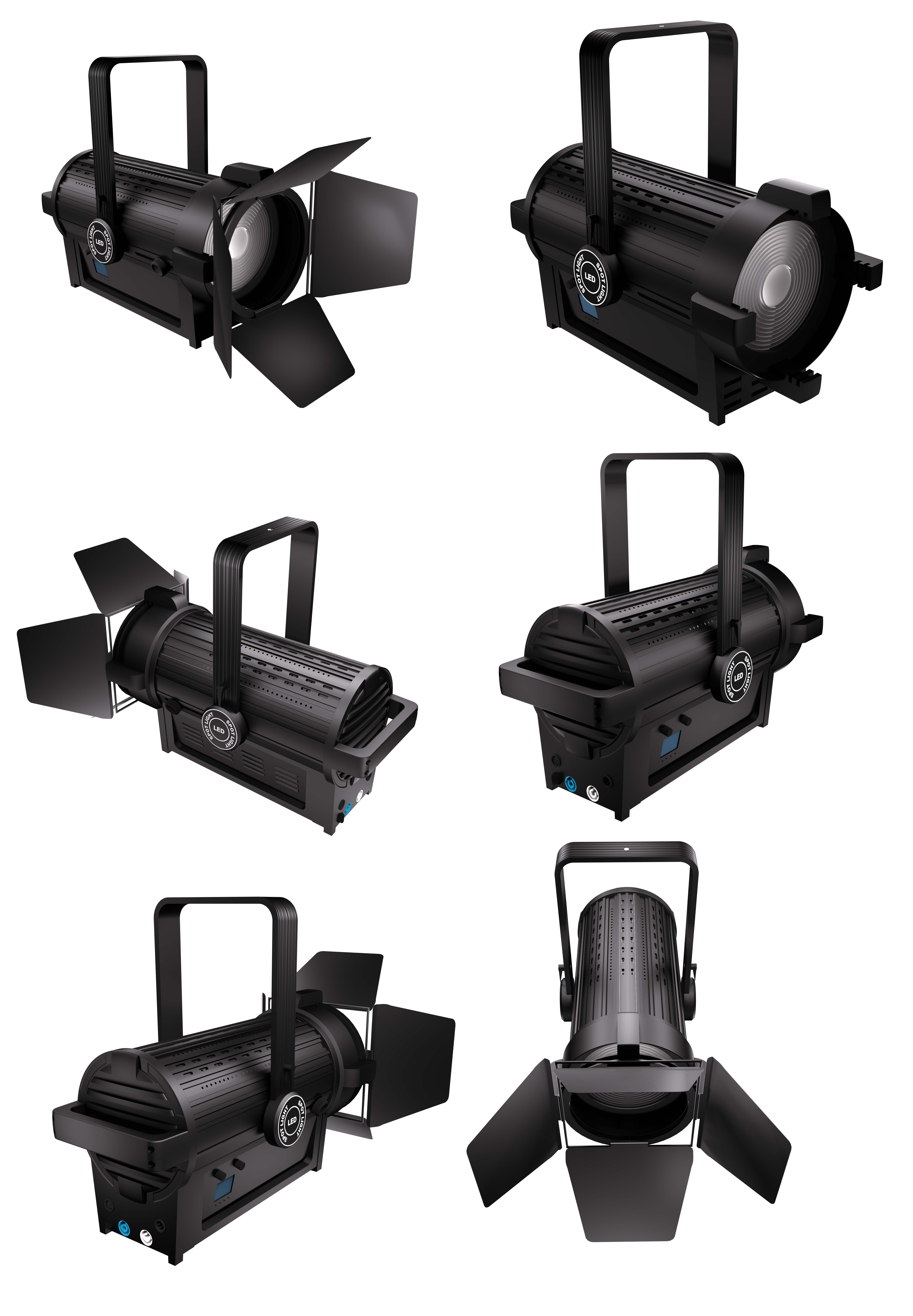

400W Bicolor Fanless LED TV Studio Fresnel Continuous Light

·This is a new 200W bicolor LED Fresnel spot light with 400W (200W WW + 200W CW 2in1 COB) light source, featuring compact structure and efficient optical design. It’s ideal for film, television, studio, and performance applications.

Features

·The internal adopts full copper radiator with large area for good heat dissipation, ensuring LED lifespan;

·Compact structure with high power (200W max) and brightness;

·Equipped with efficient optical lenses and special heat dissipation design (fan or fanless optional), delivering soft light, minimal stray light, no glare, and eye comfort;

·Uses LED technology for approximately 80% energy saving compared to traditional lamps;

·Almost no infrared radiation, significantly improving working environment;

·Built-in programs available.

Technical Specifications

Light Sources

·LED: 200W WW + 200W CW 2in1 COB (total 400W)

·Lifespan: 50,000H

·Color: Warm white to cool white

·Color temperature (CCT): 2700K-6500K

·Color Quality Score (CQS): ≥96

·Color Rendering Index (CRI): ≥96

·Television Lighting Consistency Index (TLCI): ≥98

Optics

·Beam angle: 15°-55°

·Dimmer: 0-100% linear dimming

·Dimming curve: 4 kinds

·Dimming mode: 0-100% bits dimming

·Dimming frequency: 2-25KHz

·Zoom (focus mode): Manual/Auto

·Size of lens:

Light Output

·Optimal projection distance: 3-5m

Control

·Control mode: DMX512/RDM, Manual

·DMX channel: Manual focus: 3CH/7CH; Auto focus: 4CH/8CH

·Display of control panel: LCD display + 4 buttons

·Built-in programs: Yes

Power Supply

·Related voltage: AC100-240V, 50/60Hz

·Related power: 350W

·Light output power: 200W

Construction

·Body dimension: 481×324×444mm

·Net weight: 9.2kg

·Shell color: black

·Shell material: Aluminum alloy

Working Environment

·Working temperature:  -25-40℃

·Cooling: fanless

·Temperature monitoring: have

·Protection rating (IP rating): IP20
