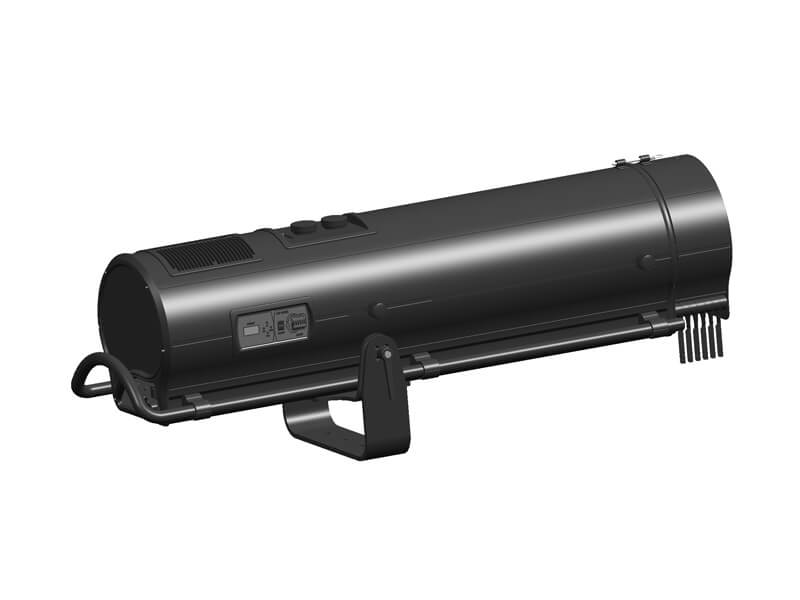

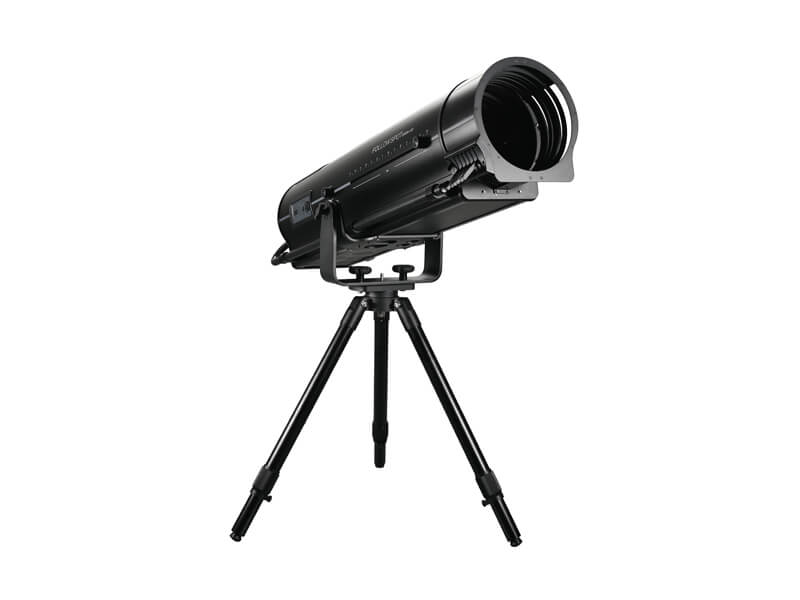

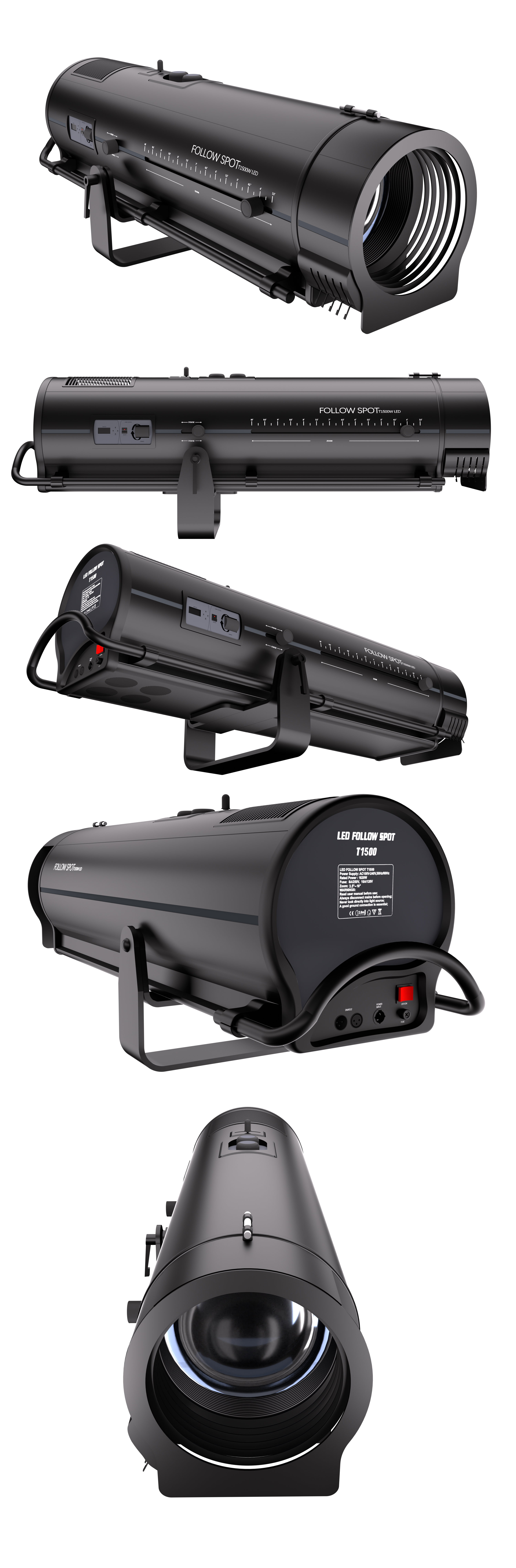

·This is a new technology 1500W manual zoom LED Follow Spot Light for theater and event. This light equips high power ODM led engine, high brightness, power on light output, its brightness is much more than 8000w metal halide follow spot light. The spot diameter can be controlled by zoom and iris. This light is a best choice for theater, entertainment, stage and other performance places.

Features

·The internal adopts full copper radiator large area, good heat dissipation, ensure the lifespan of the LED Lamps;

·Equipped with high-efficiency aspheric optical lenses (compliant with the American ETC SOURCE 4 standard), combined with a specialized heat dissipation design, the follow spot achieves perfect balance of spill light and main light—delivering soft, delicate illumination with minimal stray light, zero glare, and a more eye-friendly experience;

·Use the LED, the light energy saving 80%;

·The tripods smooth tracking ensured by an integrated damping balancer for rock-steady positioning;

·Because of almost no infrared radiation, it has greatly improve work environment.

Technical Specifications

Light Sources

·LED: high brightness 1500W LED engine

·Lifespan: 20,000h

·Color temperature: 7500K

Optics

·Beam angle: 3.5-10°

·Color Gel frame system: Six colors (via replaceable gel filters) + white light (unfiltered)

·Soft wheel: light soft and deep soft effect(manual change)

·Iris: manual adjustment

·Dimmer: 0-100% linear dimmer

·Strobe: 1-20 times/second

·Focus and zoom: manual

·Gobo clip: optional

Light Output

·Luminous flux: 85500-95000Lm

·Optimal projection distance: 120-150m

Control

·Control mode: DMX-512; EDM; Manual

·DMX channel: 2CH

·Display of control panel: OLED control panel, with rotary controller

Power Supply

·Related voltage: AC100V-240V, 50/60Hz

·Related power: 1820W

Construction

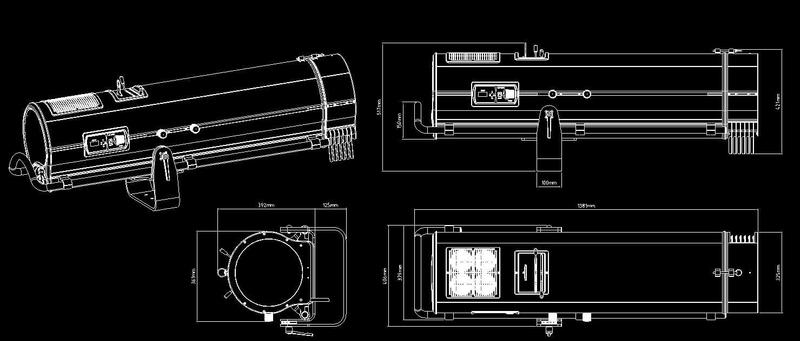

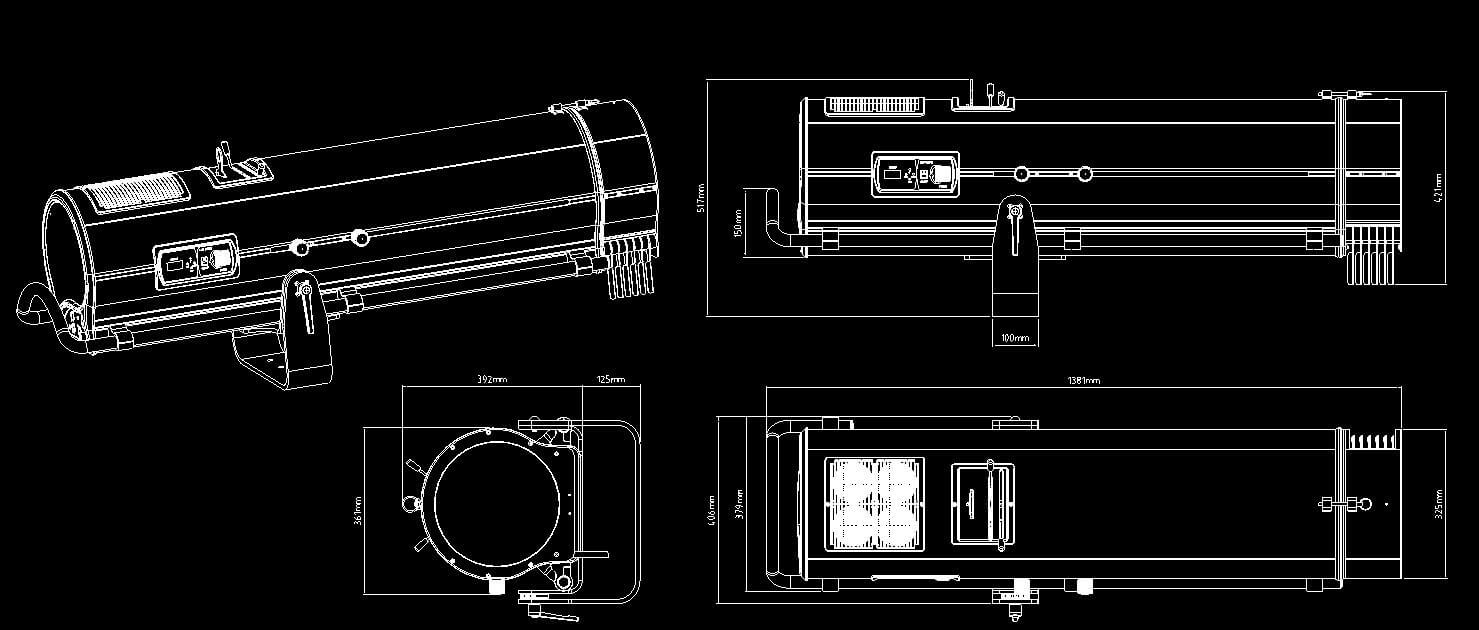

·Body dimension: 1381*361*517mm

·Net weight of light: 47.44kg

·Shell color: black

·Shell material: aluminium die casting

Power and Signal Interfaces

·Power in: TURE1 PowerCon

·DMX in: standard 3pin XLR(5pin/4pin optional)

·DMX out: standard 3pin XLR(5pin/4pin optional)

·Power switch: available

·Fuse: available, international standard

Working Environment

·Working temperature: -25-40℃

·Heat dissipation: high quality radiator, mute fan

·Protection rating: IP20

Standard Configuration Spare Part List

·Cable: 1pc XRL 3-pin/5-pin DMX cable, 1pc power cable with plug(America standard, Euro standard, or other standard)

·User manual: English version user manual

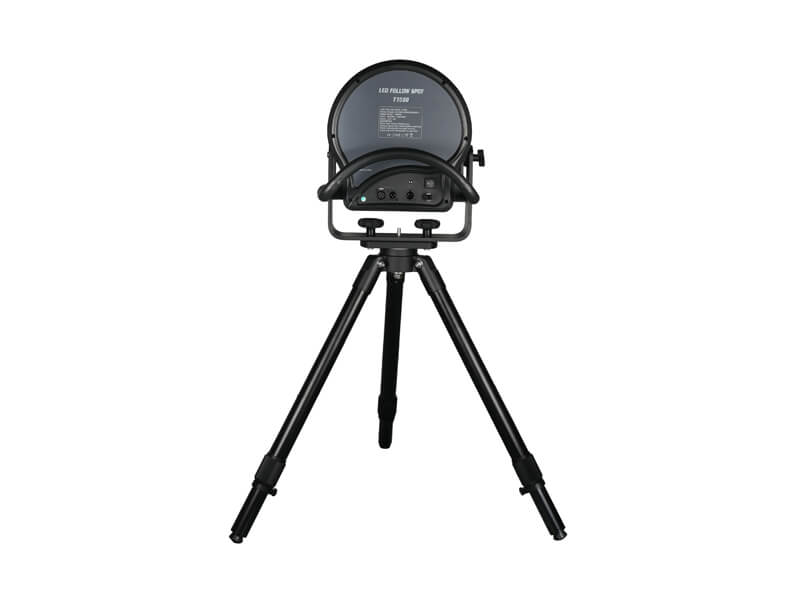

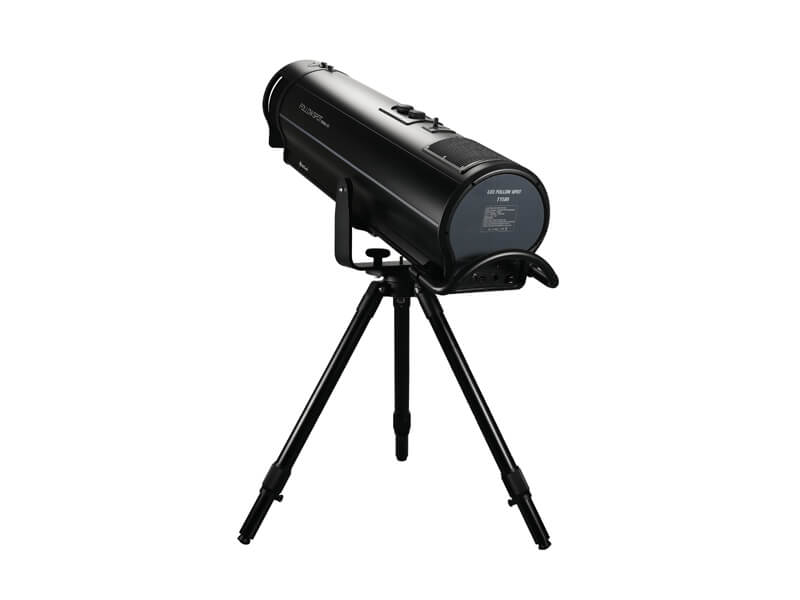

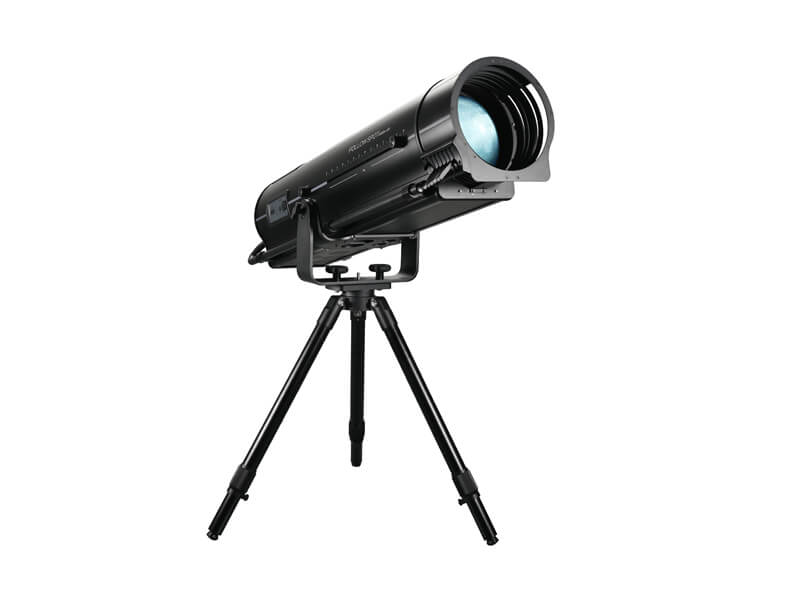

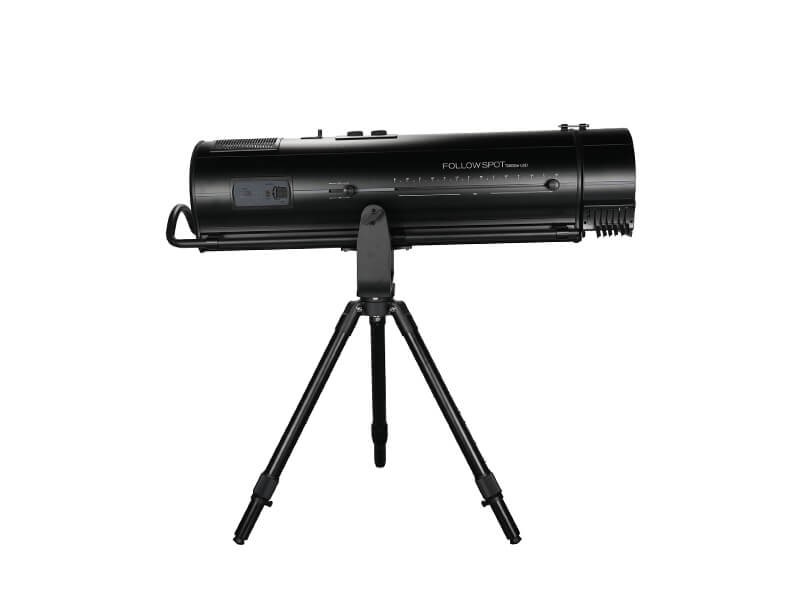

·Tripods: 1pc high quality tripods with damping balancer function

·Flight case: 1pc flight case fill 1 light and 1 tripods

Package

·Flight case package size: 1530*770*730mm(1set/case) [with caster C:25-11-15]

·Net weight of case: 37kg

·N.W/G.W/V.W: 62kg/100kg/172kg

Selling Maintain Spare Parts List

·Switching power supply: VG-TLF1500-2D-P

·LED lamp board: VG-TLF1500-2D-L

·Main board: VG-TLF1500-2D-M

·Drive board: VG-TLF1500-2D-D
