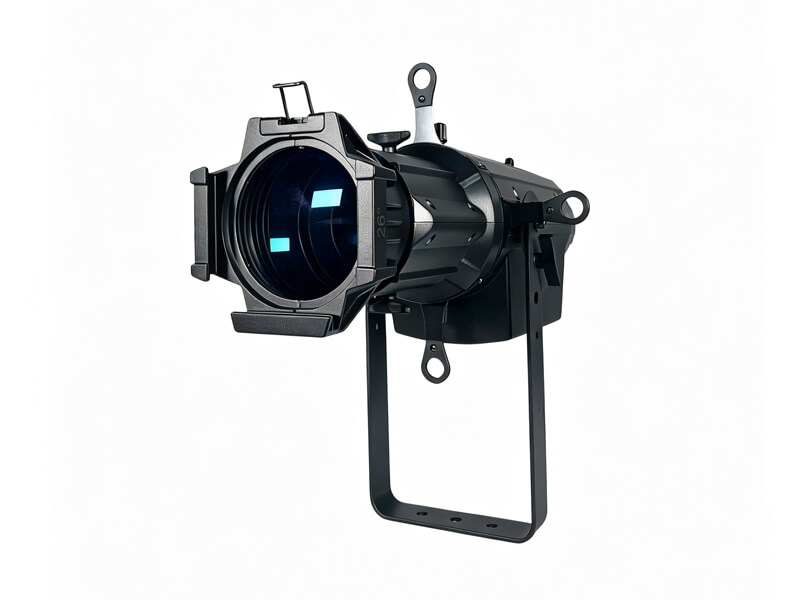

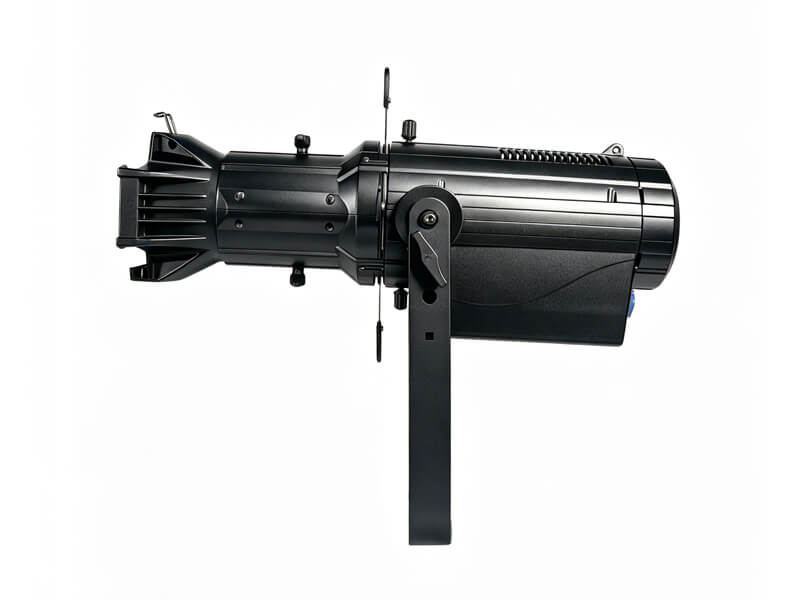

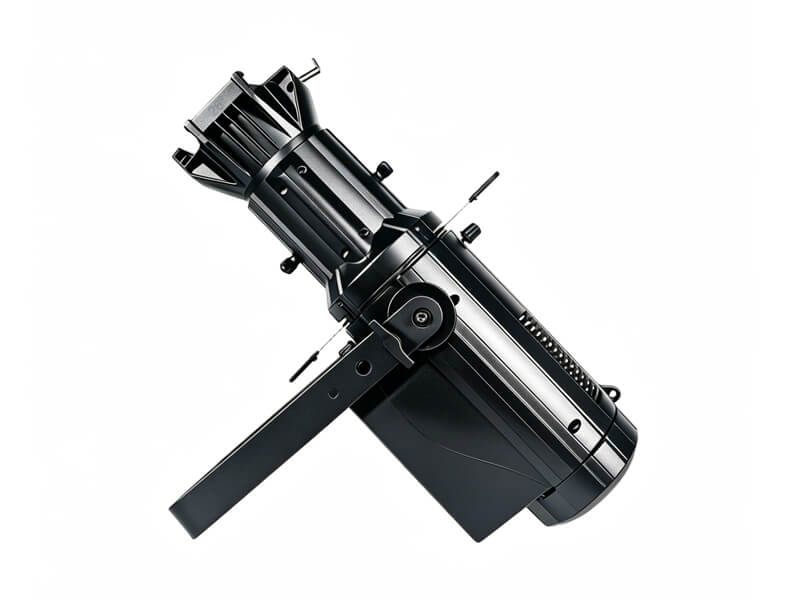

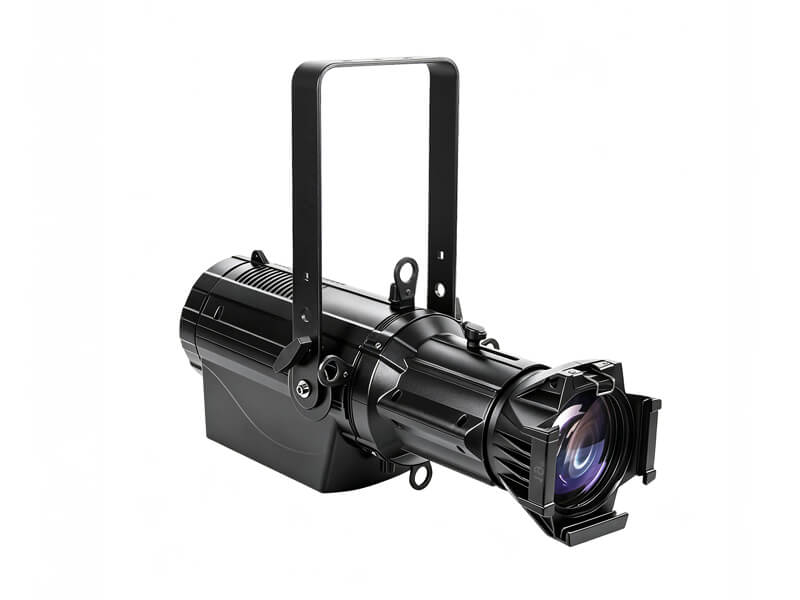

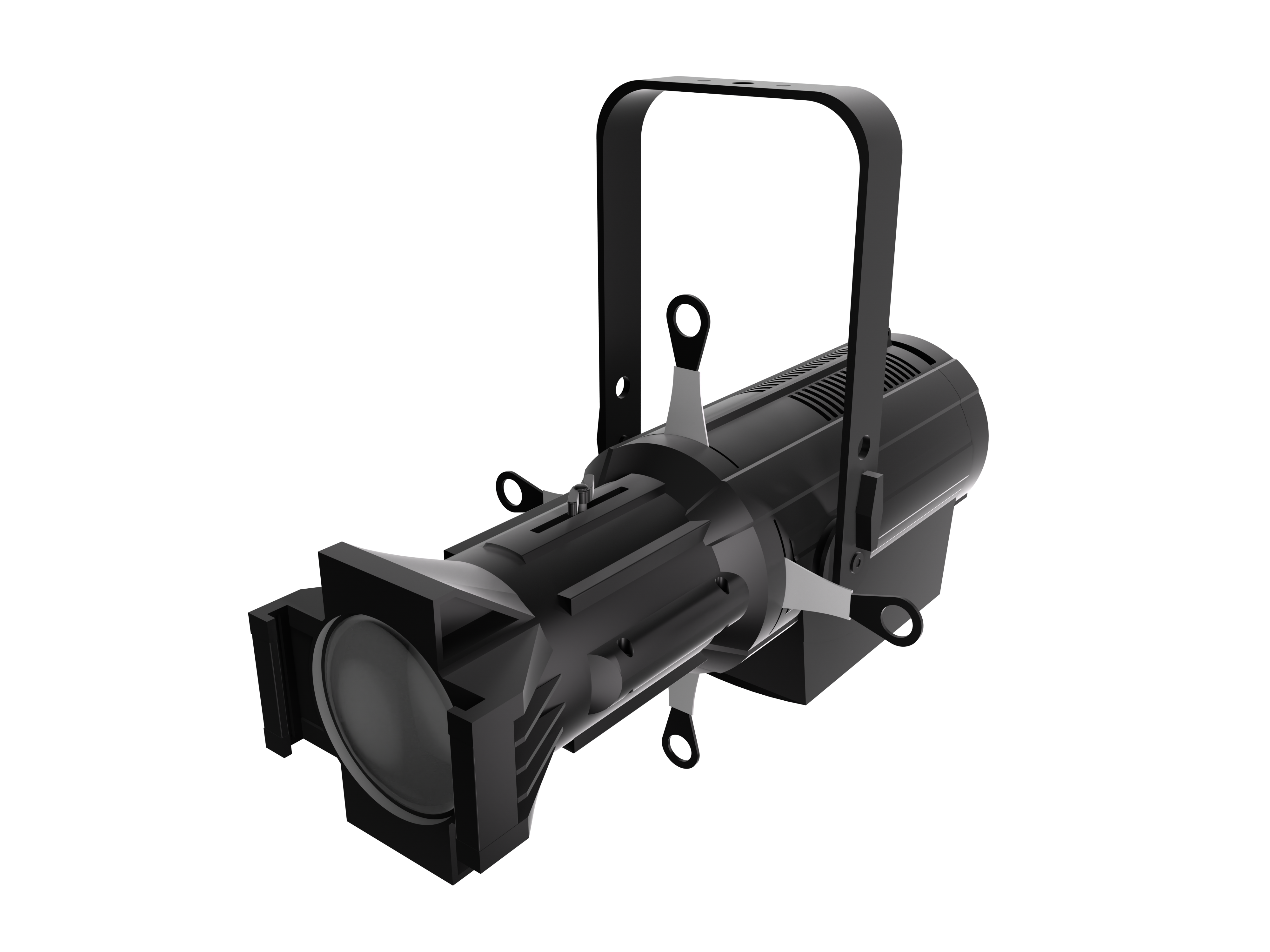

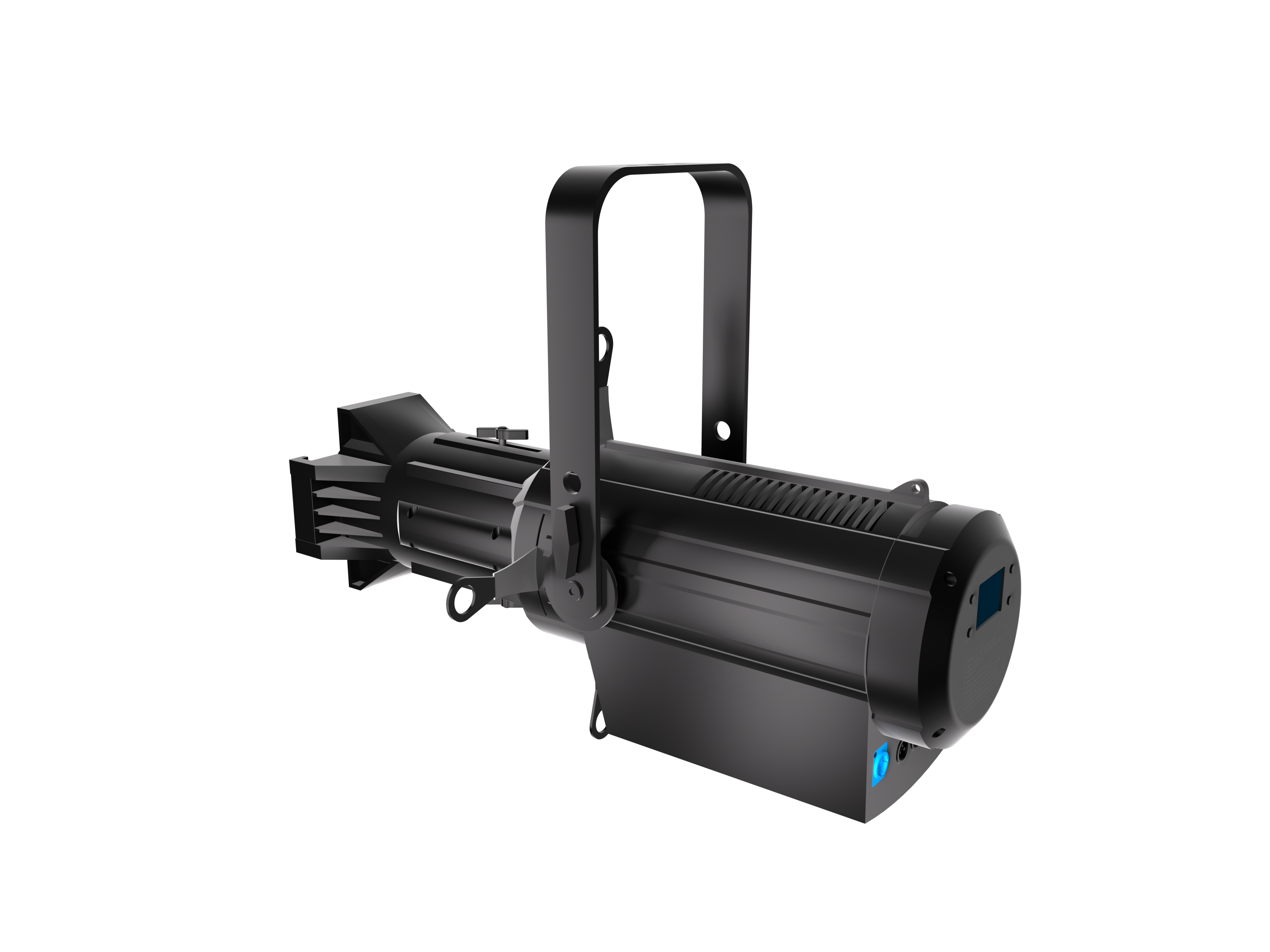

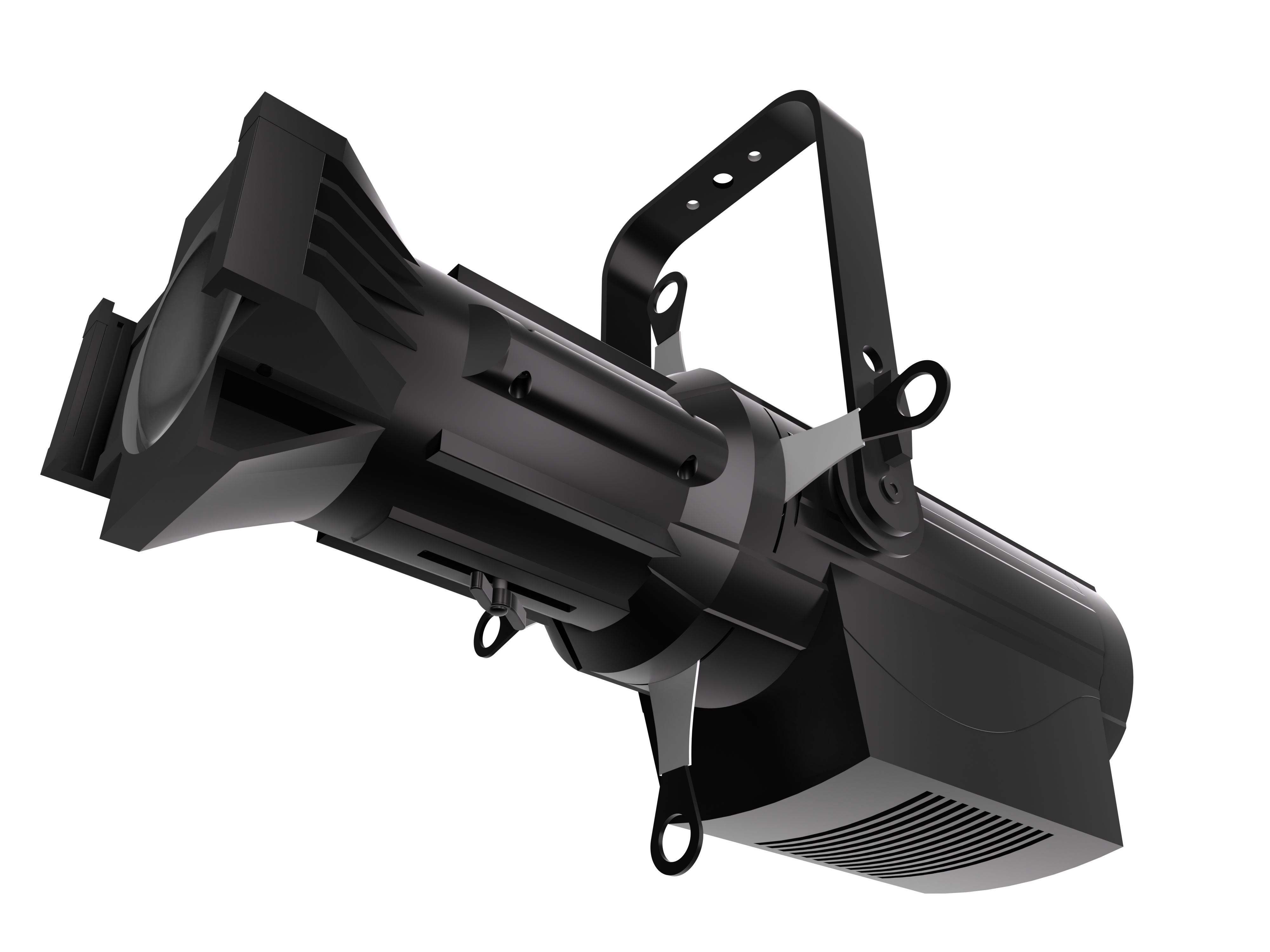

·This is a professional LED Fixed Lens Profile Spot Light. It uses high CRI and high power LED integrated lamp (COB lamp) as the light emitting element, adopting the Industry-Standard ETC Source Four Compatible Optical Lens Tube. This light is saving energy and protecting environment, pure color temperature, it is a very suitable substitute of the traditional 750 profile light.

Features

·High light efficiency, good color rendering, low glare value;

·Full-Spectrum RGBALC 6-Color Mixing: Eliminates traditional RGBW color gaps by adding Lime & Cyan wavelengths. Achieves broadcast-grade color rendering (Ra≥95, R9≥90, TLCI≥96) across the entire 2,700K–10,000K CCT range, ensuring authentic face light rendering and flawless camera performance with zero color distortion;

·Long lifespan, energy conservation, environmental protection;

·Linear dimmer by DMX signal, smoothly 0-100%;

·Silent, owns good cooling system by copper radiation and fan(within 18db);

·High CRI more than 91Ra.

Technical Specifications

Light Sources

·LED: 1pc RGBALC 6in1 400W COB LED Lamp [350W High-Efficiency Optical Output (Powered by 400W Custom RGBALC COB LED Engine, Max Power Consumption: 400W]

·Lifespan: 50,000h

·Color: RGBALC 6in1 color mixing

·Color temperature: 2700-10000K

·CRI: 91+

Optics

·Beam angle: 19/26/36/50degree optional, fixed lens

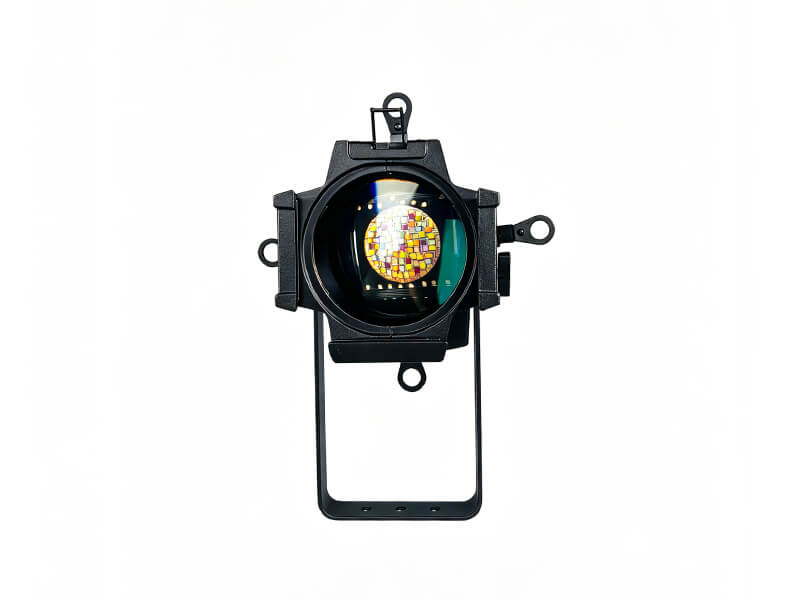

·Gobo clip: 1pc gobo clip with steel gobo, optional

·Dimmer: 0-100% linear dimmer

·Strobe: 1-25 times/second

Light Output

·Luminous flux: 11000Lm

·Optimal projection distance: 4-15m

·Light output: R: 40W, G: 35W, B: 35W, C: 35W, L: 75W, A: 75W, full color keep 350W

Movement

·Focus: Manual

·Gobo clip: Manual

Control

·Control mode: DMX-512; Demo; Master/slave

·DMX channel: 10CH

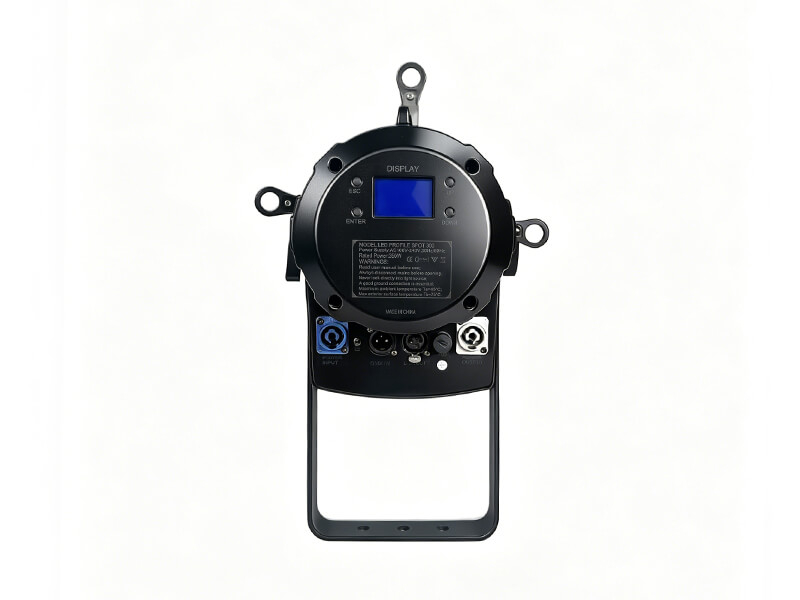

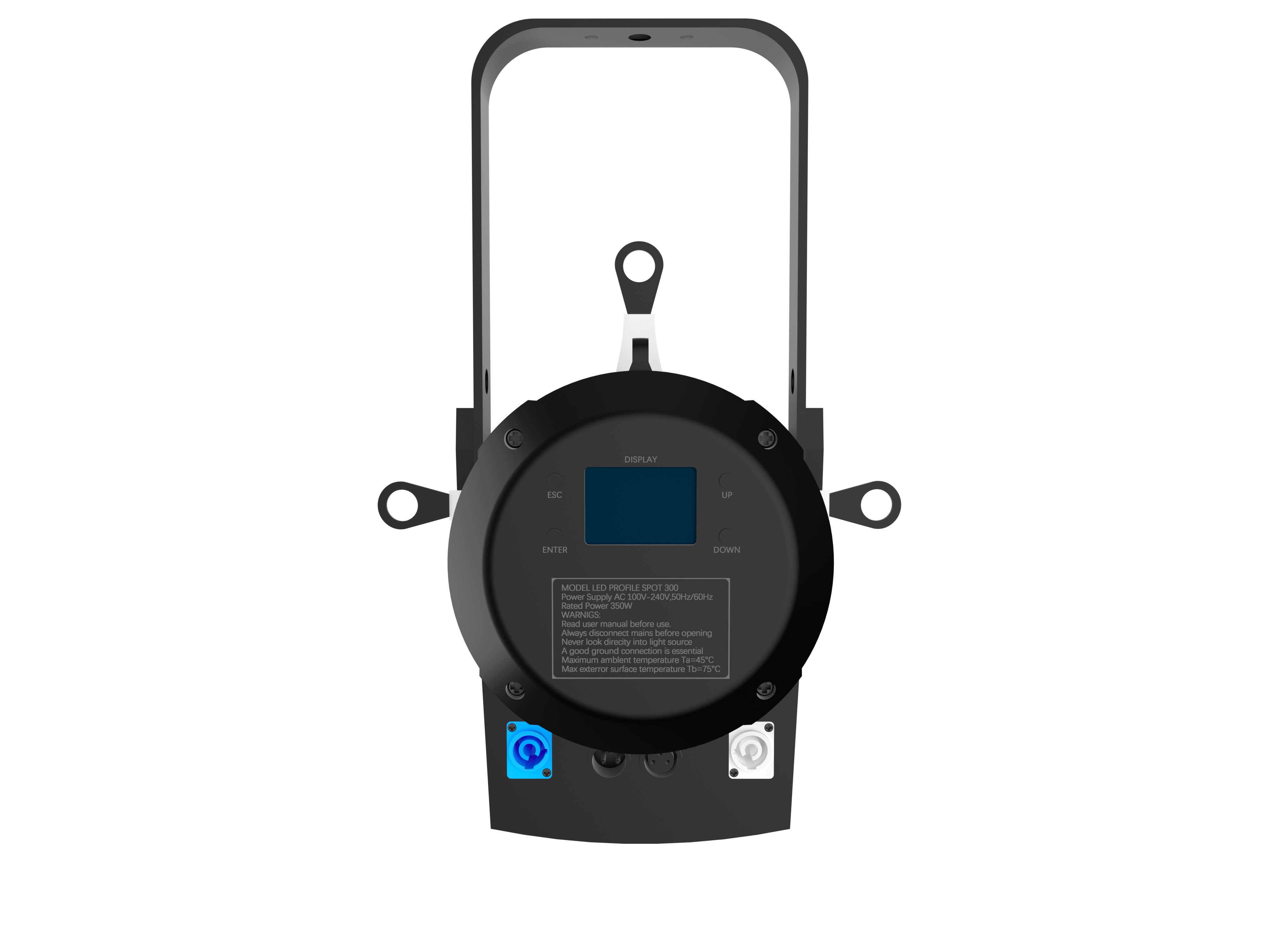

·Display of control panel: digital LCD display +4 buttons

·DMX In/Out: 3P-XLR DMX In/Out(5pin is optional), DMX 512

Power Supply

·Related voltage: AC100V-240V, 50/60Hz

·Related power: 400W

Construction

·Body dimension: D770*W330*H340mm

·Net weight: 10.5kg

·Shell color: black/white

·Shell material: die-casting aluminum

Working Environment

·Working temperature: -25-40℃

·Cooling: Copper radiation and Fan

·Protection rating: IP20

Equipment Optional Configuration

·Gobo clip: 1pc gobo clip

·Gobo: steel gobo, Gobo size: inner diameter 60mm, outer diameter71.6mm

·Barn doors: 1 set barn doors

·Colored paper clip: 1 set colored paper

Standard Configuration Spare Part List

·Cable: 1pc 3-pin DMX cable, 1pc power cable with plug(America standard, Euro standard, or other standard)

·User manual: English version user manual

·Clamp bridge: 1 set clamp bridge

Optional Configuration Spare Parts List

·Clamps: different style clamps optional (choose from VanGaa homepage “Accessaries series”)

·Safety rope: different size safety ropes optional (choose from VanGaa homepage “Accessaries series”)

Package

·Carton board box package size: 740*310*330mm(1pc/carton)

·N.W/G.W/V.W: 10.5kg/13kg/15kg

Selling Maintain Spare Parts List

·Iris: VG-LVF350H-Iris

·Gobo frame: VG-LVF350H-GF

·Color paper frame: VG-LVF350H-CF

·Switching power supply: VG-LVF350H-P

·LED lamp board: VG-LVF350H-L

·Main board: VG-LVF350H-M

·Drive board: VG-LVF350H-D
