VANGAA BROADCAST & STUDIO SERIES

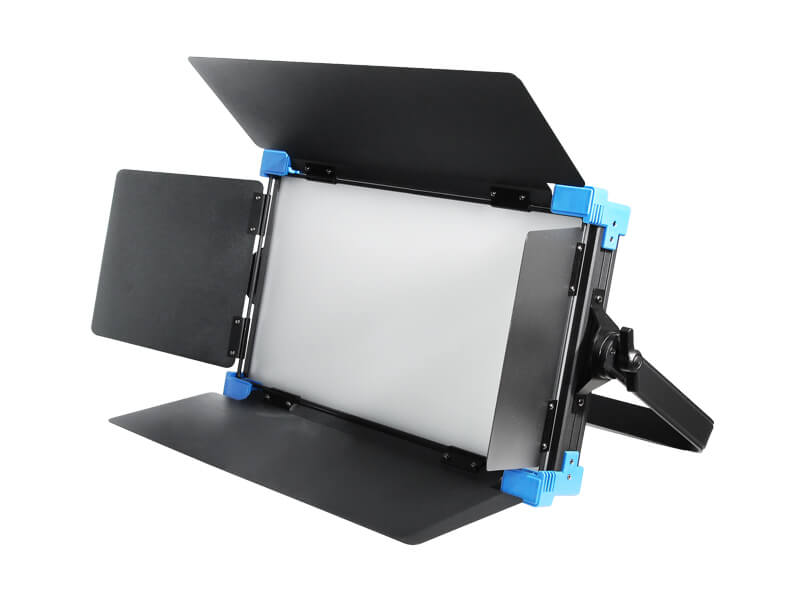

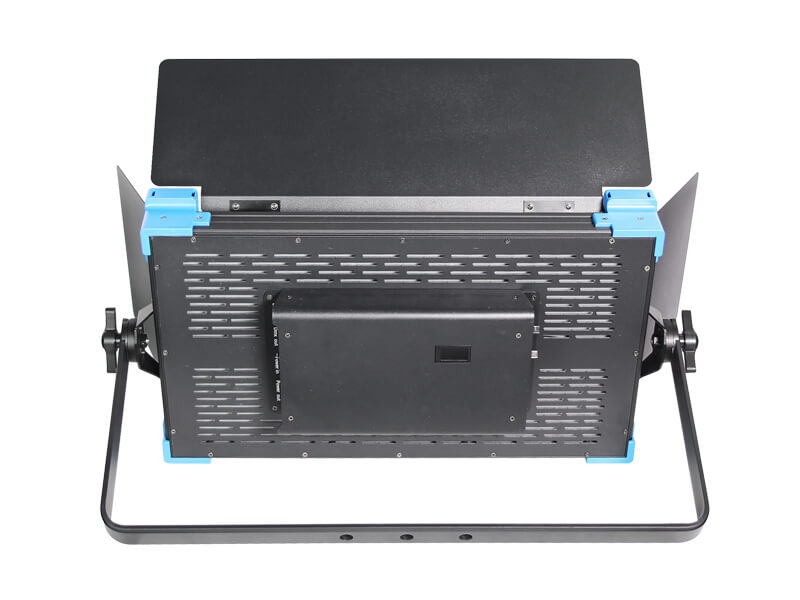

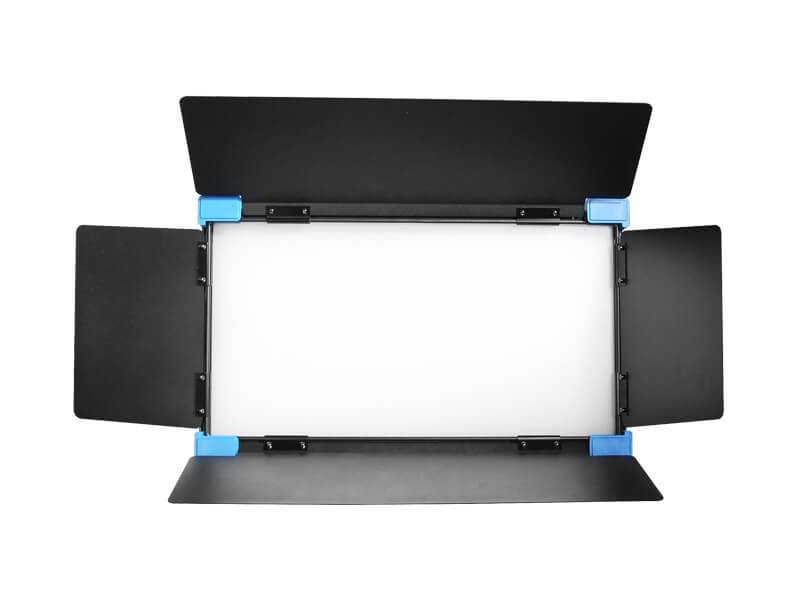

VG-HTC550C: 200W High-Output Bi-Color LED Soft Video Studio Panel Light

Name: VG-HTC550C | 200W Bi-Color LED Soft Video Studio Panel Light | VanGaa Lighting
Brand: VanGaa
Rating: 5.0 (58 reviews)

Designed for multi-function halls, television broadcast studios, film sets, virtual production rooms, and high-end video conference facilities. Powered by a 1200pcs 2835 high-density SMD LED matrix, 3200K-5600K linear tunable CCT with Ra≥97 / TLCI≥97, 5,508 Lux @ 1m ultra-high output, 100% 0dB fanless silent passive aluminum cooling, and 4K/8K broadcast camera flicker-free dimming.

LED Emitter Array

1200pcs High-CRI 2835 SMD

Color Rendition

Ra≥97 | TLCI≥97

Peak Luminous Output

5,508 Lux @ 1m (4228K)

Acoustic Performance

0dB Fanless Passive Cooling

Key Engineering Advantages

1200pcs High-Density SMD Matrix

Packed with 1200 high-efficiency 0.5W 2835 SMD chips, generating up to 5,508 Lux @ 1m of wide, uniform illumination with 30% higher output than standard studio panels.

0dB Natural Convection Heat Dissipation

Heavy-duty extruded aluminum housing acts as a giant natural heat sink. Pure convection cooling guarantees 100% 0dB silent operation near sensitive studio microphones.

Broadcast-Grade Ra≥97 & TLCI≥97

Provides smooth linear CCT tuning from 3200K warm tungsten to 5600K crisp daylight, delivering accurate, natural anchor skin tones without green or magenta shifts.

Flicker-Free 4K/32K Broadcast Capture

High-frequency PWM driver circuitry prevents video banding and rolling-shutter artifacts during high-speed camera shooting and live broadcasts, with 0–100% smooth dimming.

Technical Specifications

1. OPTICAL & LIGHT SOURCE SPECIFICATIONS
LED Emitter Array	1,200pcs 0.5W 2835 SMD High-CRI & High-Brightness LED Chips
Color Temperature (CCT)	3200K-5600K Linear Continuously Tunable
Color Rendering Index	CRI Ra≥97 \| TLCI≥97
Optical Beam Angle	120 deg; Soft Wide Spread (High-Uniformity Frosted Diffuser Panel)
Photometric Lux Output	5,508 Lux @ 1m (4228K) \| 4,714 Lux @ 1m (5512K) \| 4,557 Lux @ 1m (3134K)
LED Rated Lifespan	50,000 Hours
2. CONTROL, DIMMING & PROGRAMMING
Control Protocols	Standard DMX512, RDM Feedback, Manual Encoders, Master-Slave, Demo Mode
DMX Channel Modes	3CH / 4CH DMX Channel Modes
Dimming Performance	0 - 100% 16-bit Smooth Linear Dimming (Flicker-Free High Frequency PWM)
Display & Controls	Digital LCD Display + 2 Rotary Precision Encoders (Quick CCT & Dimming Adjustment)
3. ELECTRICAL & THERMAL ACOUSTICS
Input Voltage & Frequency	AC 100V -240V, 50/60Hz (Worldwide Auto-Switching Power Supply)
Rated Power Consumption	200W Rated Power (PF > 0.98 High Power Factor)
Thermal Dissipation	100% 0dB Fanless Natural Convection Aluminum Radiator (Zero Fan Noise)
Connectors	PowerCON In/Out (Loop-through daisy chain) \| 3-pin & 5-pin XLR DMX In/Out
4. HOUSING, DIMENSIONS & PACKAGING

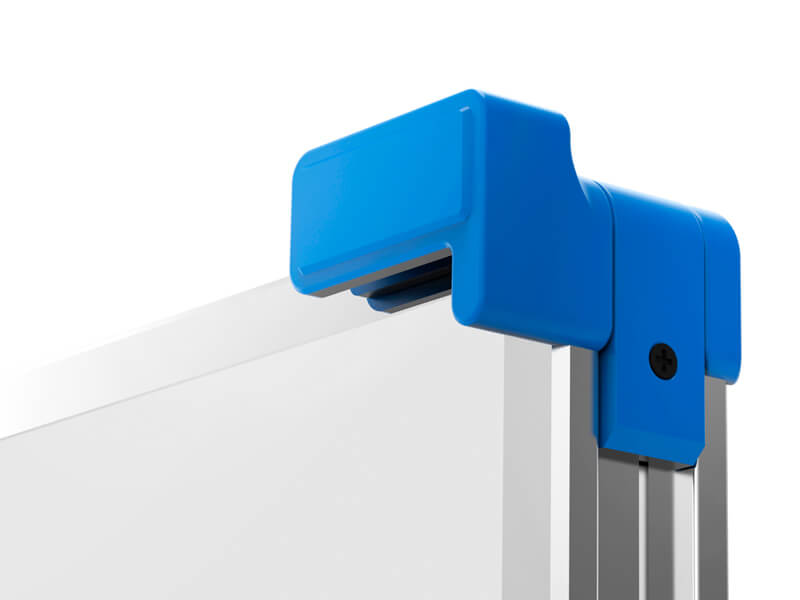

Housing Construction	Heavy-Duty Die-Cast Aluminum Alloy Chassis with Matte Black Scratch-Resistant Finish
Dimensions (L×W×H)	480270127 mm (18.910.65.0 in)
Net Weight	9.5 kg (20.9 lbs) (Ideal for ceiling grid pantographs & floor stands)
Included Standard Parts	1pc PowerCON cable, 1pc DMX signal cable, 1pc Heavy-duty mounting yoke, 1pc User manual
Optional Accessories	Detachable 4-Leaf Metal Barndoor, 45deg Honeycomb Softgrid, Studio Road Flight Case (4-in-1 / 6-in-1)

Professional Studio & Broadcast Applications

Multi-Function Conference Halls TV Broadcast Newsrooms Virtual XR Production & Green Screen Studios Interview & Talk Show Theaters Live Streaming & E-Commerce Podcasting

Plan Your Broadcast Studio Lighting with VanGaa

Contact our lighting engineering team for photometric lux calculations, studio grid layout design, wholesale pricing, and customized OEM/ODM project support.

WhatsApp Direct: +86 138 2512 8583 Official Email: info@vangaa.com

·Based on the LED Film and Television Flat Light, using high brightness SMD LED chips beads matrix arrangement of large area, through the whole aluminum shell to realize heat dissipation naturally. This light has high brightness, good head dissipation, ultra-quiet and other features. It can satisfy the requirement of indoor and outdoor movie filming for the lighting layout. It is a good substitute of the traditional three basic colors light.

·Features

·The light’s lighting function is controlled by DMX-512, very convenient;

·Using bead LED chips, pure color temperature, can realize 0-100% linear dimmer;

·The light body adopts outside frame design, the modeling is beautiful, installation very convenient, safe and reliable;

·The color temperature can be adjusted from warm white to cold white.

Technical Specifications

Light Sources

·LED: 1200pcs 0.5W 2835 SMD high CRI and high brightness LED bead chips

·Lifespan: 50,000hours

·Color: from warm white to cold white

Optics

·Beam angle: 120degree

·Dimmer: 0~100% linear dimmer

·CRI: Average>97

·TLCI: Average>97

·Color temperature: 3200K-5600K adjustable

Light Output

·Iluminance: 4714lux @1m 5512K, 4557lux@1m 3134K; 5508lux@1m 4228K

·Light output power: 180-200W

Control

·DMX channel: 3CH, 4CH

·Control mode: DMX-512, Demo mode, Manual

·Control panel: LCD display + 2 rotation buttons

Power Supply

·Related voltage: AC100V-240V, 50/60Hz

·Power consumption: 200W-190W

Construction

·Body dimension: D480*W270*H127mm

·Net weight: 9.5kg

·Shell color: black

·Housing material: aluminum alloy

·Working Environment

·Working temperature: -25-40℃

·Cooling: aluminum radiator and light body

·Protection rating: IP20

Spare Parts

·Cable: 1set DMX in and DMX out signal cable, and 1set Power in and Power out power cable with plug [standard configuration]

Package

·Carton board box package size: 665*280*395mm(1pc/carton)

·N.W/G.W/V.W: 9.5kg/11kg/16kg

·Flight case package size: 780*530*510mm(4pc/case) [c:18-05-08]

·N.W/G.W: 36kg/63kg [need confirm the weight]

·Flight case package size: 1080*530*510mm(6pc/case) [yg:18-12-21]

·N.W/G.W: 54kg/85kg

·Flight case package size: 900*1100*400mm(10pc/case) [need confirm]

·N.W/G.W: 95kg/125kg

Selling Maintain Spare Parts List

·Switching power supply: VG-HTC550C-P

·LED lamp board: VG-HTC550C-L

·Main board: VG-HTC550C-M

·Drive board: VG-HTC550C-D

3D rendering

Specification

Information
Light source	1200pcs 0.5W 2835 SMD high CRI and high brightness LED bead chips
Color temperature	3200K-5600K adjustable
Beam angle	120degrees
Iluminance	full, 680lux@3m; 3200K, 950lux@3m; 5600K
CRI	Ra≥95
DMX channel	3CH/4CH,DMX-512
Related power	200W,AC100V-240V, 50/60Hz
Body dimension	D480W270H127mm
Net weight	9kg


VG-HTC550C is a Based on the LED Film and Television Panel Light, using high brightness SMD LED chips beads matrix arrangement of large area, pure color temperature, can realize 0-100% linear dimmer;through the whole aluminum shell to realize heat dissipation naturally.
 This light has high brightness, good head dissipation, ultra-quiet and other features. It can satisfy the requirement of indoor and outdoor movie filming for the lighting layout.
 Notice:The light body adopts outside frame design, the modeling is beautiful, installation very convenient, safe and reliable;The color temperature can be adjusted from warm white to cold white.

Product Description

Main feature

 200W high brightness  2.  High CRI 95+

 Adjustable kelvin range from 3200K warm white to 5600K daylight.

 DMX 512 connectivity
 Smooth 0-100% linear dimming
 Colorful panel LCD display + 4 buttons

Technical Specifications

Light Sources
 * LED: 1200pcs 0.5W 2835 SMD high CRI and high brightness LED bead chips  * Color: from warm white to cool white
 * Service life: 50,000h

Light output
 * Color temperature: 5600K
 * Color rendering index: ≥95

Controls and procedures
 * DMX channel: 3CH/4CH * Control mode: DMX-512, Demo mode, Manual

 Electrical specifications
 * Input voltage: AC100V-240V, 50/60Hz
 * Power consumption: 200W

Structure specification
 * Lamp body size: D480*W270*H127mm
 * Net weight: 9Kg
 * Shell material: aluminum radiator and light body
 * Shape color: black

Use environment
 * Protection level: IP20
 * Environmental temperature: -25-40℃
 * Cooling system: forced cooling fan/heat sink

 List of standard accessories
 * 1set DMX in and DMX out signal cable,
  * 1set Power in and Power out power cable with plug [standard configuration]



Production Images

Product package:

 Flight case(customized and optional) Thick woodboard Long hinge Quality aluminum alloy Best rubber wheels

Company Profile

About us

 Guangzhou VanGaa lighting Co,Ltd , Founded in 2014,Located in Huadu district of Guangzhou City. Well trained staff, strict
 quality control, and professional sales team, provide excellent before sale and after sale service.
 * Manufacturer / Factory
 * Accept OEM & ODM
 * Qualified with CE, ROHS, FCC certificates
 * One store service from product to your door
 * Our goal : keep growing and expanding with clients

Certificate

  ISO certified factory, products strictly in compliance with CE, RoHS standards.

Packing&Shipping

FAQ

 Q. Can i order light with my own design and Logo?
 A:Definitely yes,we offer custom services according to your specific requirements


 Q.what format do you need for logo?
 A:PDF,AI,JPG,CDR,PSD etc.


 Q. Are there any other related products?
 A:Yes，we can purchase Filght case，Lamp hang，Constant force hinge，Slide way，Tripod，Safety rope


Q. Can I have a sample order for led stage light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

 Q. How to proceed an order for led light?
A: 1 let us know your requirements or application.
     2 We quote according to your requirements or our suggestions.
     3 customer confirms the samples and places deposit for formal order.
     4 We arrange the production.

Q. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.

Q. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available

Q. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q: Do you offer guarantee for the products?
A: Yes, we usual offer 1 years warranty to our products( Of course you can opt for a lifetime warranty).After the warranty period, we can continue to provide after-sales service of products and replacement of spare parts
