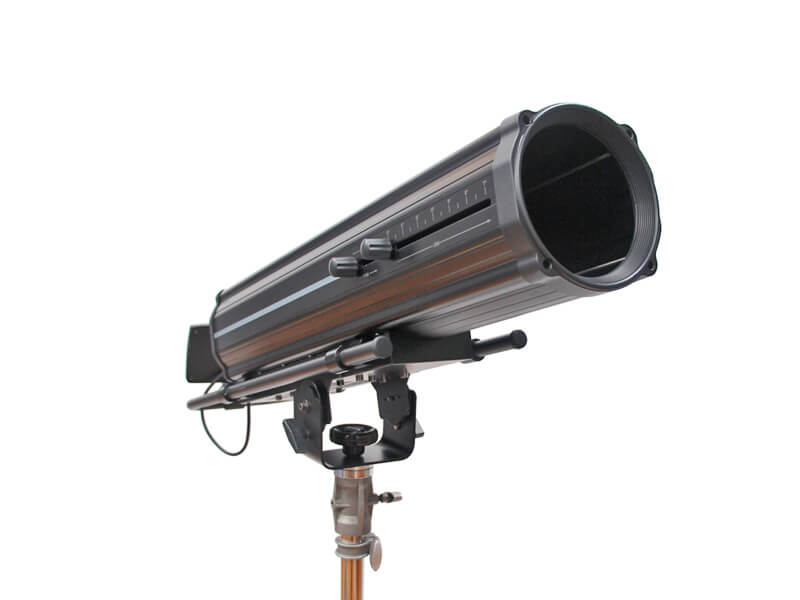

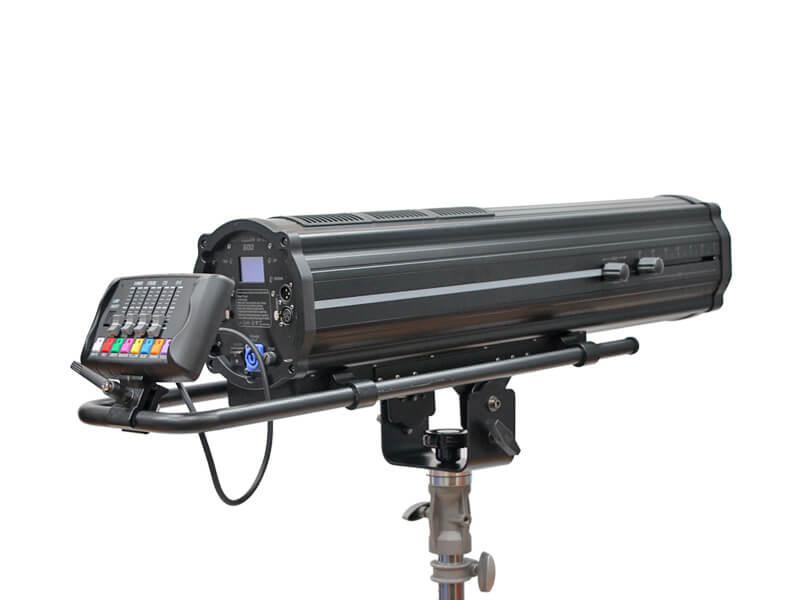

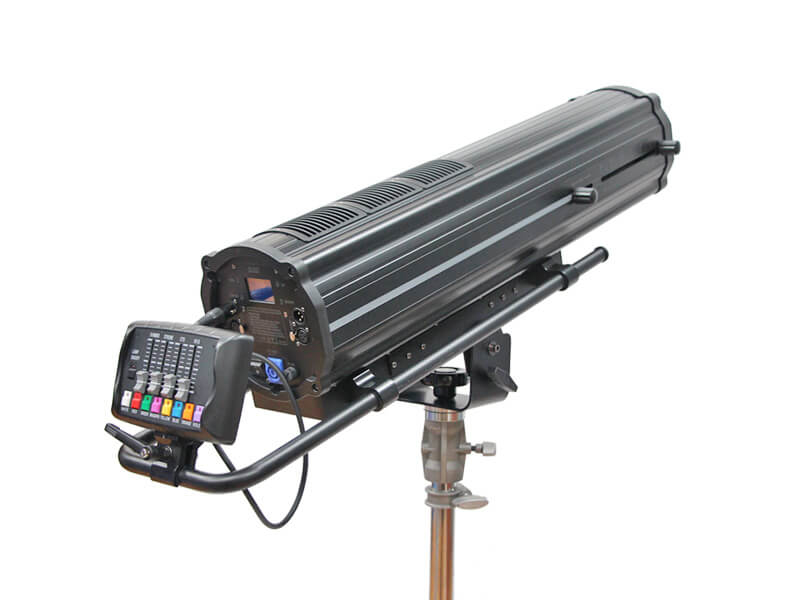

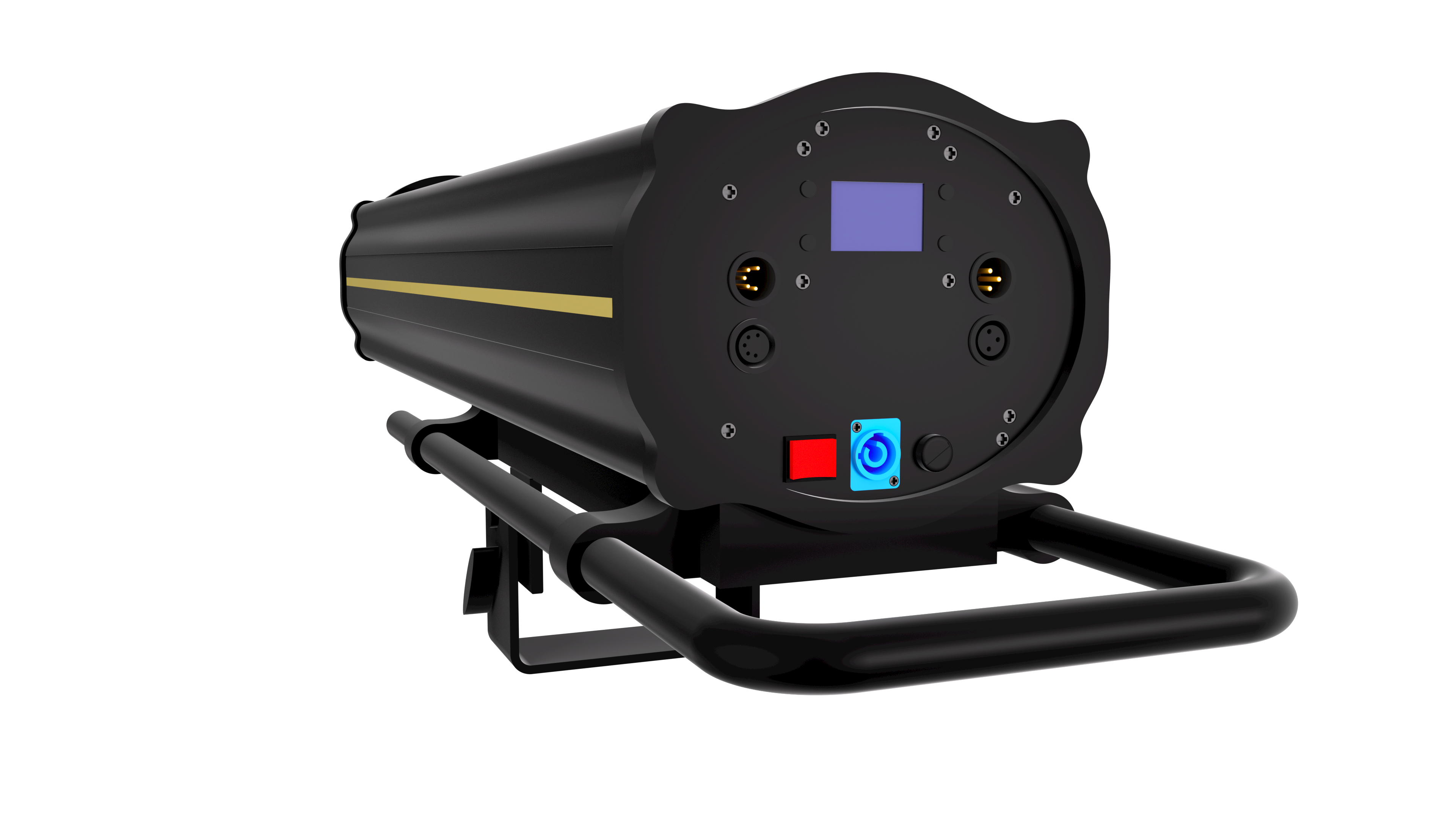

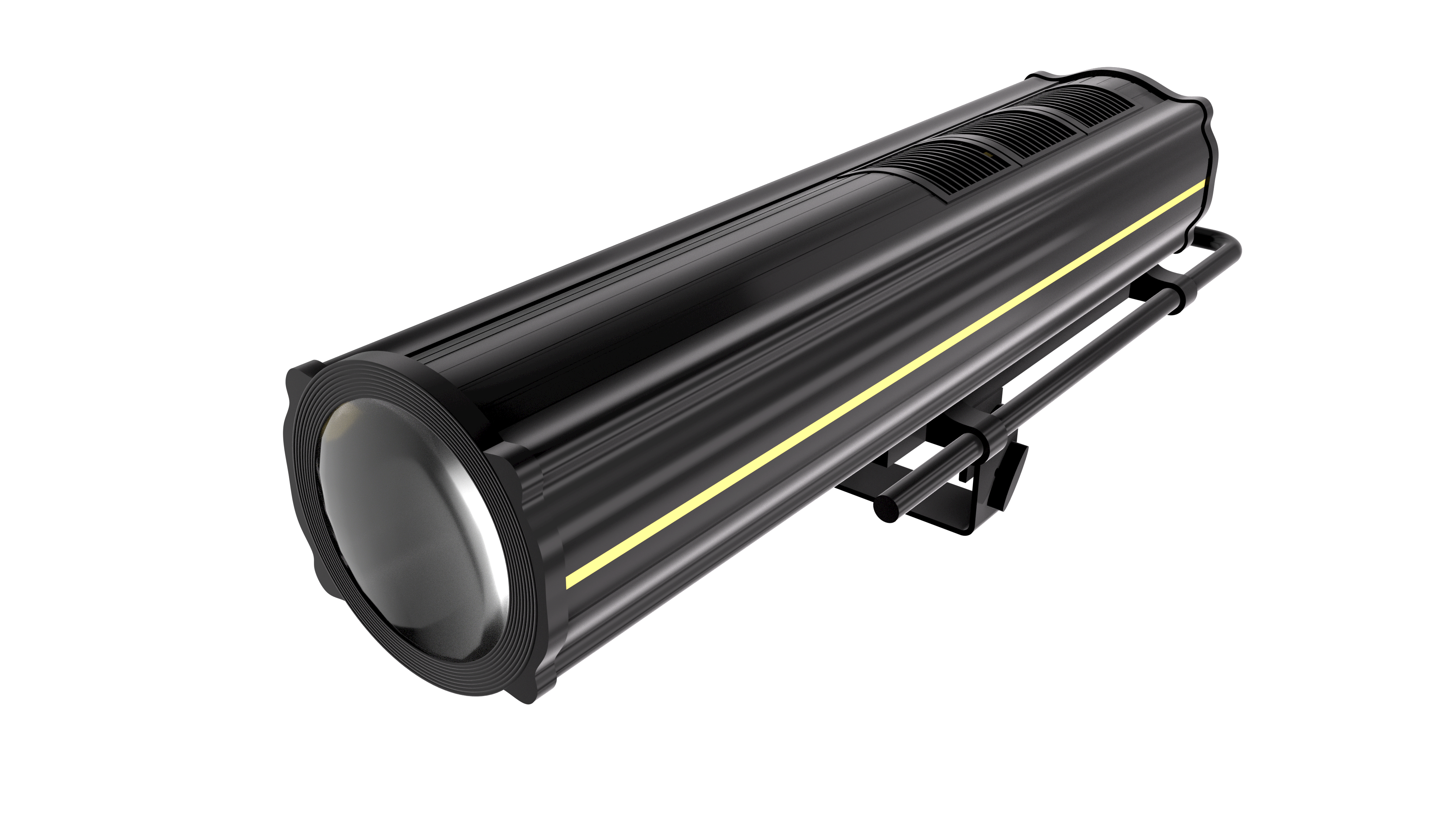

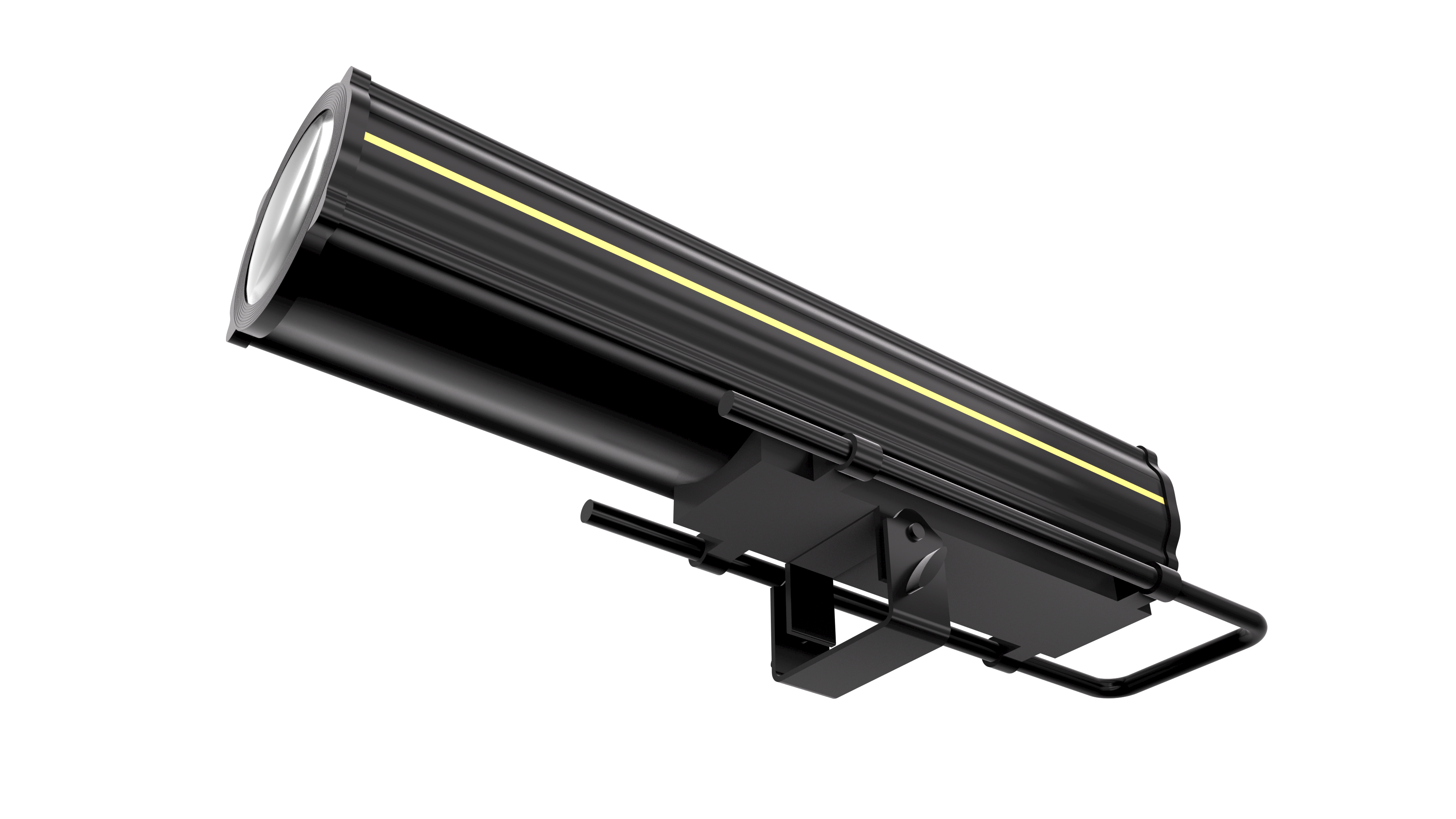

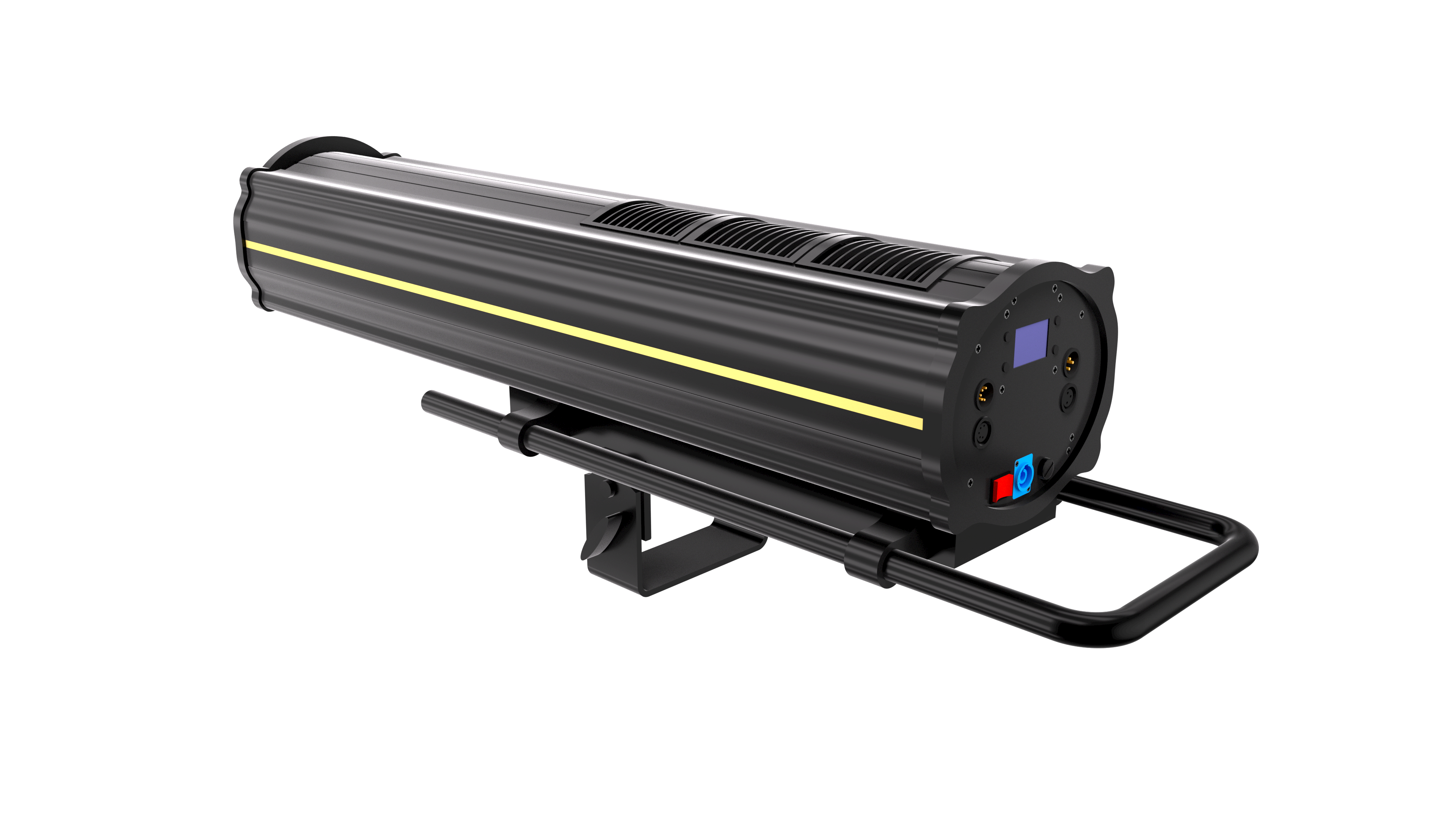

600W LED DMX Follow Spot Light

[Go to Download Interface to check the more clear picture]

• This follow spot light equips high power import brand lamp, high brightness, power on light output, its brightness is much more than 3000w metal halide follow spot light. It’s the best choose for entertainment, stage and other places.

Features

• The internal adopts full copper radiator large area, good heat dissipation, ensure the lifespan of the LED Lamps;

• Through efficient optical lenses, with special heat dissipation design, make the light is downy, small stray light, no glare, eyes more comfortable;

• Use the LED, the light energy saving 80%;

• Because of almost no infrared radiation, it has greatly improve work environment.

Technical Specifications

Light Sources

• LED: high brightness 600W LED lamp

• Lifespan: 50000h

• Color: seven color + white changeable, by color wheel

• Color temperature: 7500-8000K

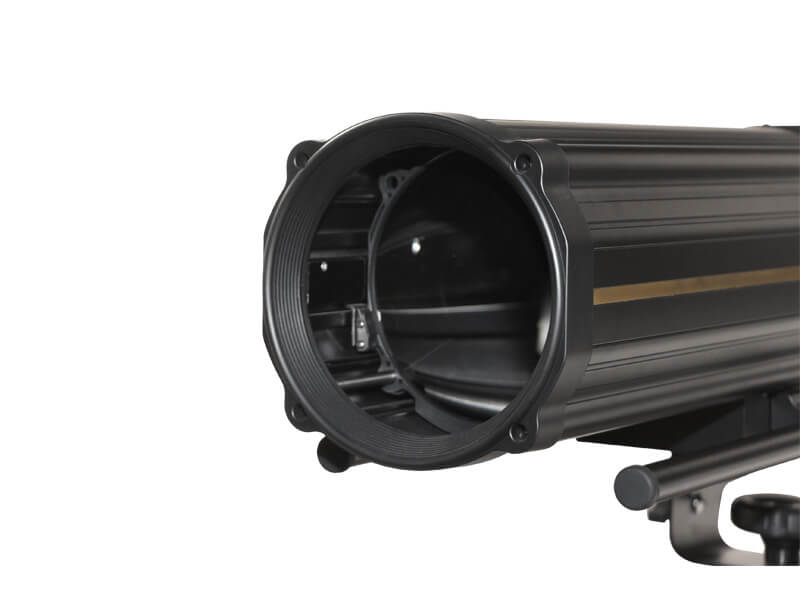

Optics

• Beam angle: 7-13°

• Color wheel: seven color+ white

• Color temperature wheel: 3200K+4500K+5600K

• Dimmer: 0-100% linear dimmer

• Strobe: 1-20 times/second

Light Output

• Optimal projection distance: 100-150m

Control

• Control mode: DMX-512; Manual

• DMX channel: 5CH

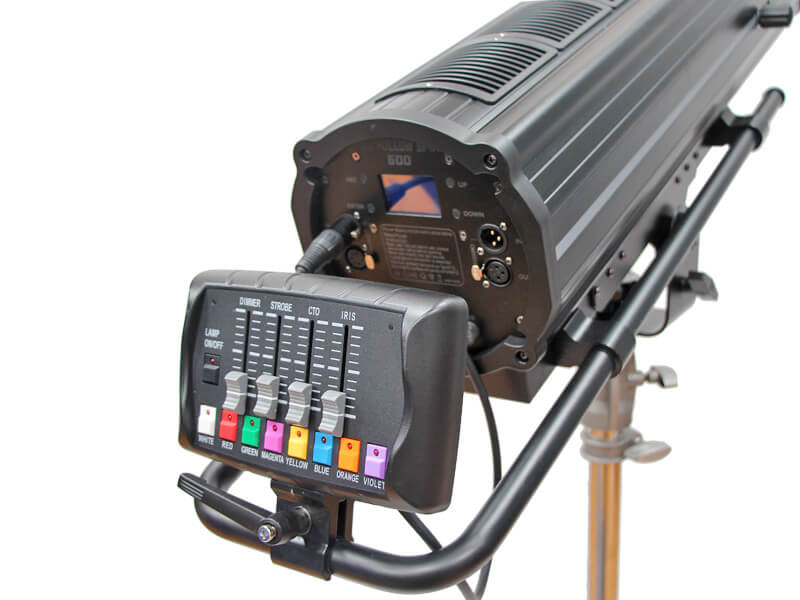

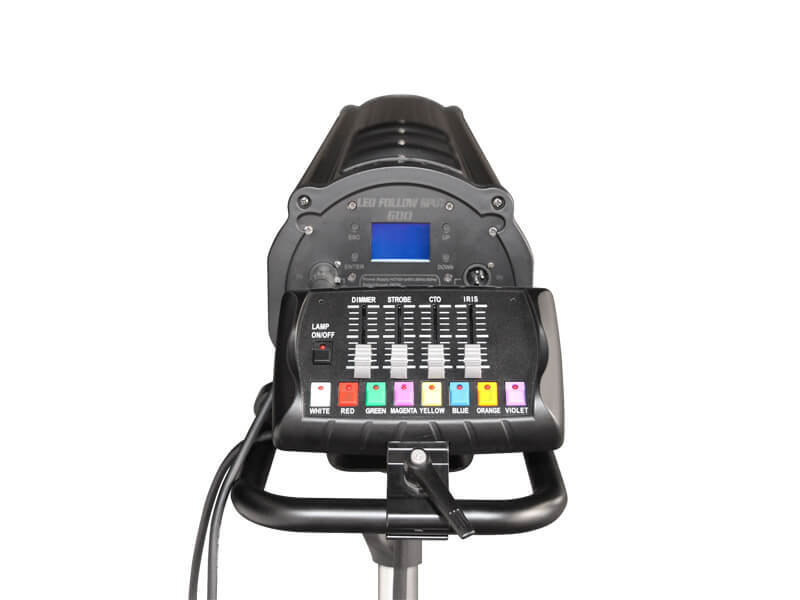

• Display of control panel: LCD display + 4 buttons

Power Supply

• Related voltage: AC100V-240V, 50/60Hz

• Related power: 680w

Construction

• Body dimension: 1028*208*336mm

• Net weight: 17.5kg

• Shell color: black

• Shell material: aluminiumdiecasting

Working Environment

• Working temperature: -25-40℃

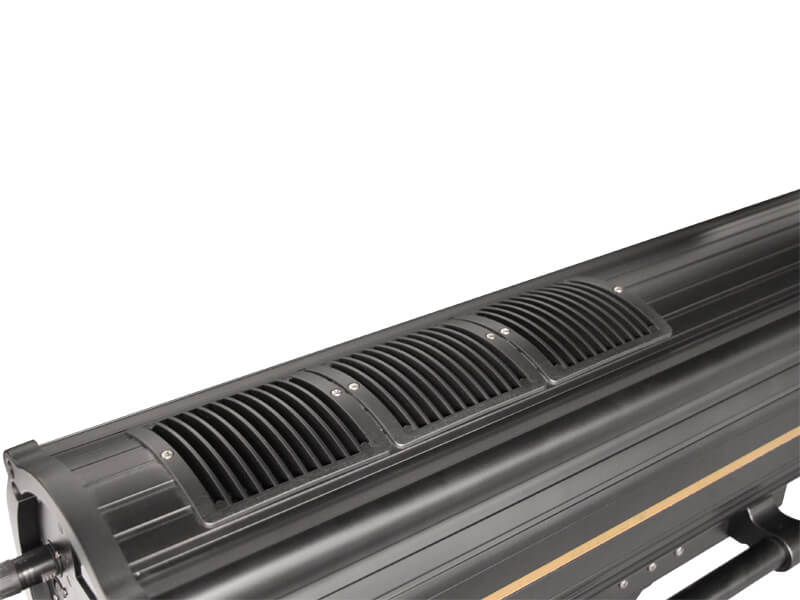

• Cooling: Fan+ aluminum radiator

• Protection rating: IP20

Standard Configuration Spare Part List

• Cable: 1pc 3-pin DMX cable, 1pc power cable with plug(America standard, Euro standard, or other standard)

• User manual: English version user manual

• Tripods: 1pc

Optional Configuration Spare Parts List

• Clamps: different style clamps optional (choose from VanGaa homepage “Accessaries series”)

• Safety rope: different size safety ropes optional (choose from VanGaa homepage “Accessaries series”)

Package

• Carton box package size: 93*35*32 mm (1 pc/carton) [c: 21-05-31]

• N.W/G.W/V.W: 16 kg/17 kg/20.8 kg

• Carton board box package size: 1120*190*190mm(1pc tripod/carton) [f: 21-05-31]

• G.W/V.W: 7.5kg/8.1kg

• Flight case package size: 1240*540*510mm(1pc/case) [without caster] [c:19-11-19]

• N.W/G.W/V.W: 17.5kg/53.7kg/68.3kg

• Flight case package size: 1150*990*630mm(2pc/case) [with caster] [yg:19-04-05]

• N.W/G.W/V.W: 35kg/70kg/143kg

Selling Maintain Spare Parts List

• Switching power supply: VG-LFL600-P

• LED lamp board: VG-LFL600-L

• Main board: VG-LFL600-M

• Drive board: VG-LFL600-D
