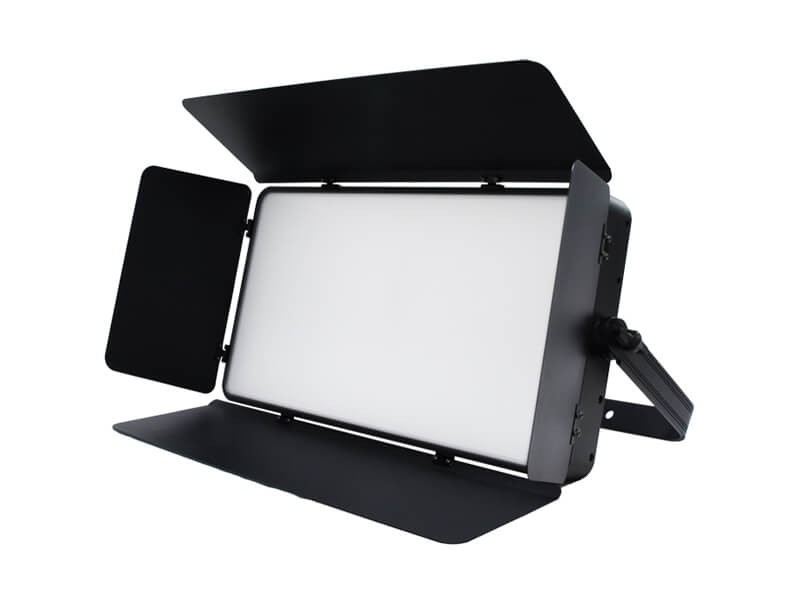

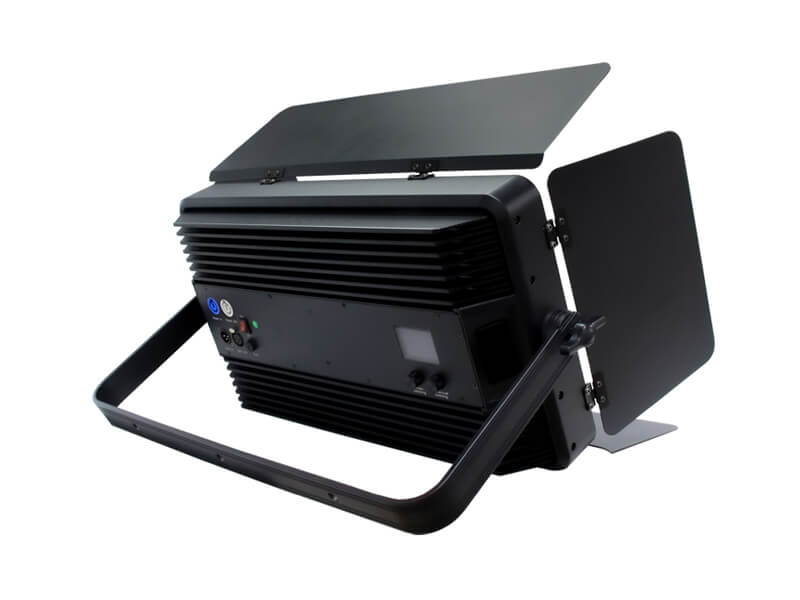

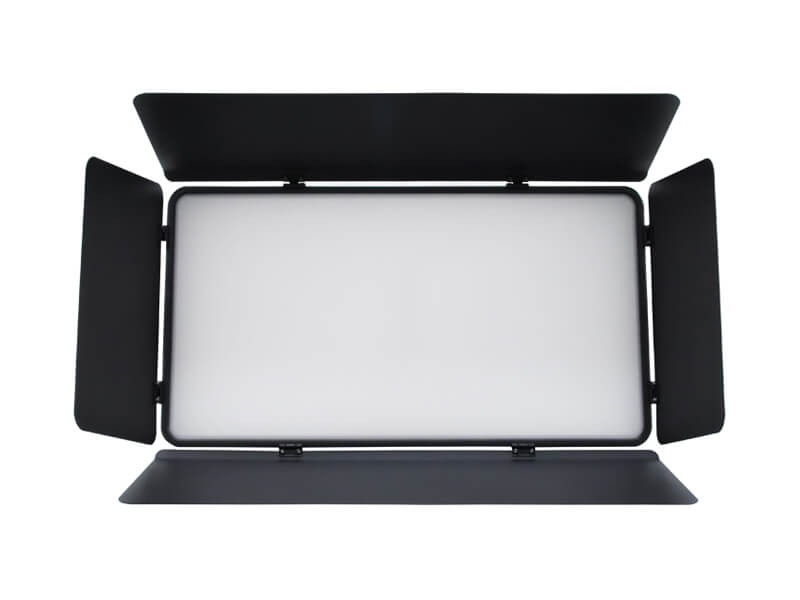

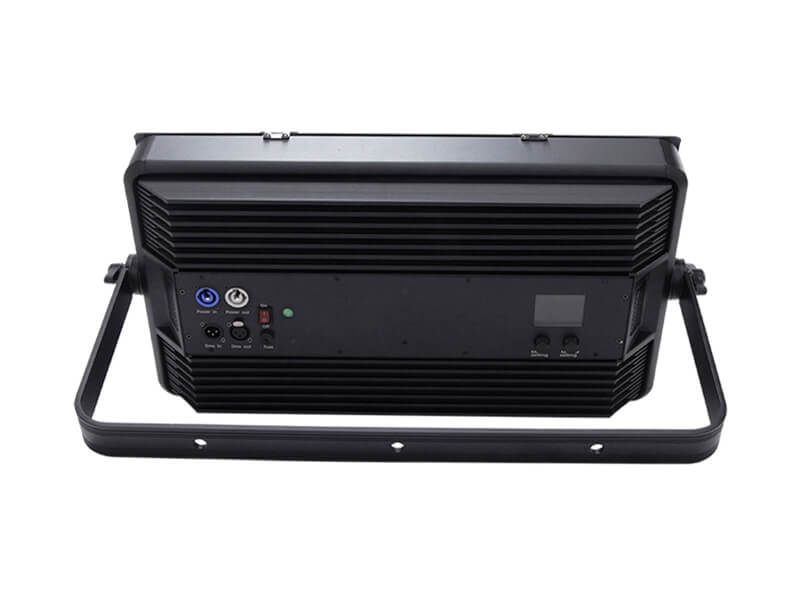

300W CRI95 Dimmer LED Video Panel Light(With Mute Fan)

-Model: VG-HTC1488
-Light output power: 300-280W
-Color: 3200k/5600k
-Beam angle: 120°
-CRI: 95+/ 97+
Availability:
Quantity:
  • VG-HTC1488
  • VanGaa
  • VG-HTC1488
  • 2020-03
  • Selling

300W CRI95 Dimmer LED Video Panel Light(With Mute Fan)

  • The broadcasting must use the no fan silent high power LED Video Panel Light. To meet this request, we have designed this new 300W with mute fan(under 40db within 1meter) led video panel light. It’s can keep 300W light output for every color, and has 3000-6000K color temperature adjustment. This light is very suitable for large-scale tv station, studio, multi-function room and other video places.

Features

  • The light’s lighting function is controlled by DMX-512, very convenient;

  • Using bead LED chips, pure color temperature, can realize 0-100% dimmer;

  • The light body adopts outside frame design, the modeling is beautiful, installation very convenient, safe and reliable;

  • High power output, every color can keep output 300W;

  • 3200-5600K color temperature adjustment;

Technical Specifications

Light Sources

  • LED:1488pcs 0.5W high CRI and high brightness 2835 SMD LED bead chips

  • Lifespan:50,000hours

  • Color: from warm white to cold white

Optics

  • Beam angle: 120degree

  • Frequency: 24K flick free light source drive system

  • Dimmer: 0~100% linear dimmer

Light Output

  • CRI: Ra≥95

  • Special CRI: R9≥90, R15≥90

  • Color temperature: 3200k/5600k optional

  • Light output power: 300-280W

Control

  • DMX channel: 1CH, 2CH, 3CH

  • Control mode: DMX-512, RDM, Demo mode, Manual, Dimmer rotary knob(wireless remote control option)

  • Control panel: 2.4in LCD display + 2 Rotation Knob

Power Supply

  • Related voltage: AC90V-240V, 50/60Hz

  • Related power: 350W

Construction

  • Body dimension: D640*W98*H425mm

  • Net weight: 12.5kg

  • Shell color: black

  • Housing material: aluminum alloy

Working Environment

  • Working temperature: -25-40℃

  • Cooling: aluminum radiator, and a mute fan

  • Noise: under 20db

  • Protection rating: IP20

Spare Parts

  • Cable: 1set DMX in and DMX out signal cable, and 1set Power in and Power out power cable with plug [standard configuration]

  • Light visor: 1pc light visor [optional configuration]

Package

  • Carton board box package size: 665*395*280mm(1pc/carton) [f:21-09-17]

  • N.W/G.W/V.W: 12.5kg/15kg/18kg

  • Flight case package size: 710*610*710mm(4pcs/case)[yg:20-12-14]

  • N.W/G.W/V.W: 56kg/84kg/62kg

  • Flight case package size: 760*700*650mm(4pcs/case)[f:21-05-25]

  • N.W/G.W/V.W: 56kg/84kg/62kg (待定)

  • Flight case package size: 910*700*650mm(5pcs/case)[f:21-05-25]

  • N.W/G.W/V.W: kg/kg/kg (待定)

Selling Maintain Spare Parts List

  • Switching power supply: VG-HTC1488C-P

  • LED lamp board: VG-HTC1488C-L

  • Main board: VG-HTC1488C-M

  • Drive board: VG-HTC1488C-D


HTC1488C 1400C

300W Bicolor sky panel light

Brand Name Vangaa
Power 300W
Color Temperature Bi-color 3000K-6000K Adjustable
DMX channel 4CH/5CH
LED 1488pcs 0.5W high CRI and high brightness LED bead chips
Control mode DMX-512, RDM, Demo mode, Manual, Dimmer rotary knob
Related voltage AC90V-240V, 50/60Hz
CRI CRI: Ra≥95
Special CRI: R9≥90, R15≥90
Function OEM ODM
