In modern stages and commercial shows, catwalk show lighting design is not just a functional lighting tool but also the core carrier of artistic expression. Especially in high-end fashion shows, brand launch events, etc., lighting must balance functional illumination and visual atmosphere creation. This article focuses on high-color-rendering lighting equipment, combining the collaborative use of profile lights, beam cutters, and color wash lights to explore the design logic and technical implementation of catwalk show lighting systems.
Catwalk show lighting needs to accurately restore clothing colors and material details, so LED light sources with a Color Rendering Index (CRI) ≥95 are preferred. For example, 350W LED profile lights use Citizen COB lamp beads, with a CRI of Ra≥95 and R9 (red color rendering) >90, which can truly show the delicate texture of fabrics like silk and leather.
Technical Points:
Light source color temperature should match scene needs. For instance, profile lights with adjustable color temperature (3000K-5600K) can suit both cool-toned tech-inspired shows and warm-toned fashion themes.
For reflective fabrics (e.g., satin), use a diffuser to reduce spot intensity and avoid color overexposure caused by high-color-rendering light sources.

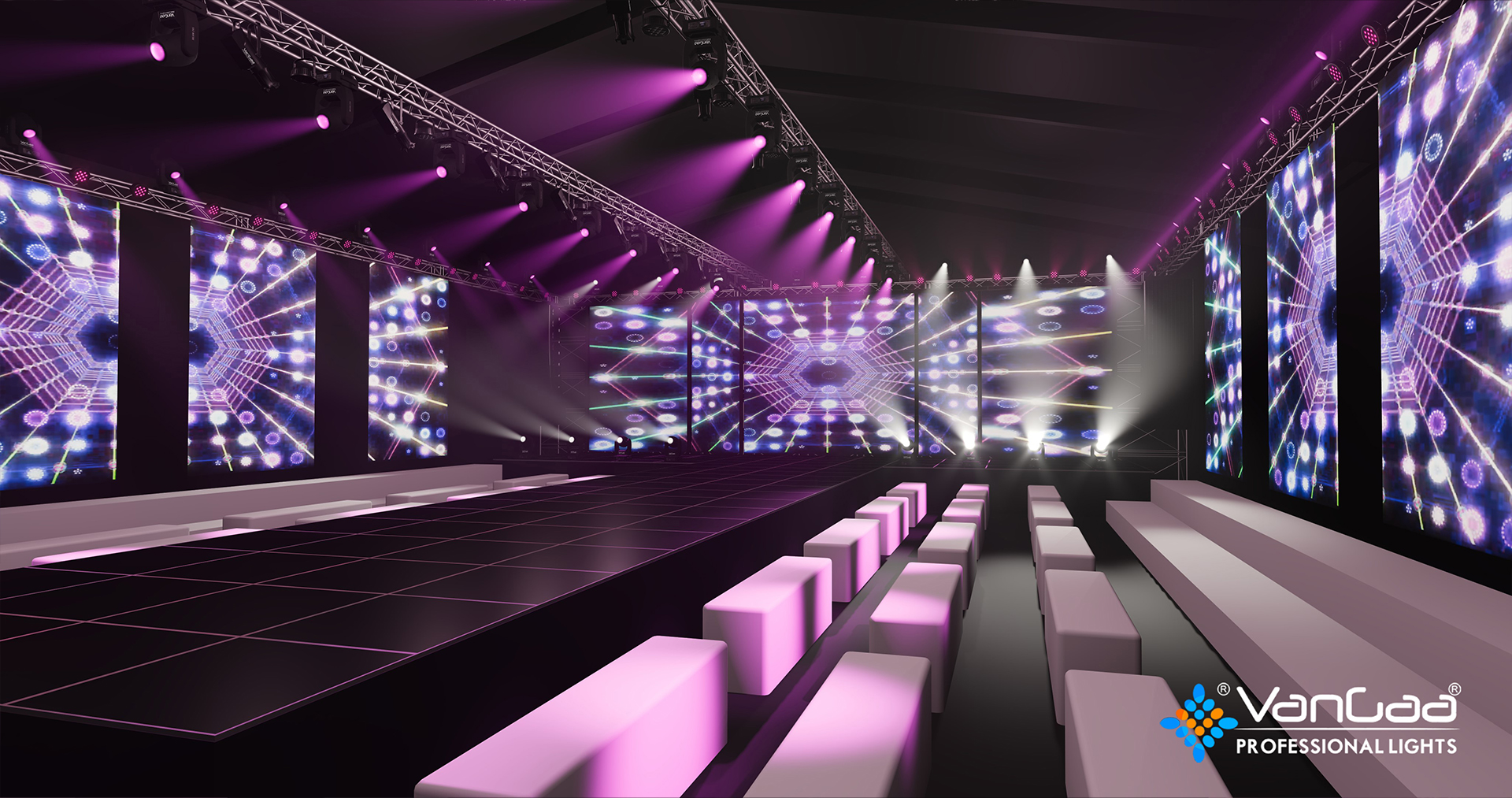

Middle catwalk front light: Use beam cutters as the main light source. With 540° horizontal scanning + 270° vertical scanning technology, create 45° angled light to eliminate shadows on models' faces.
Side auxiliary light: 16 units of 19° narrow-beam profile lights project at a 45° angle on both sides, forming a three-dimensional crossover with the main light to enhance clothing silhouette presentation (e.g., suit lapels, skirt pleats).

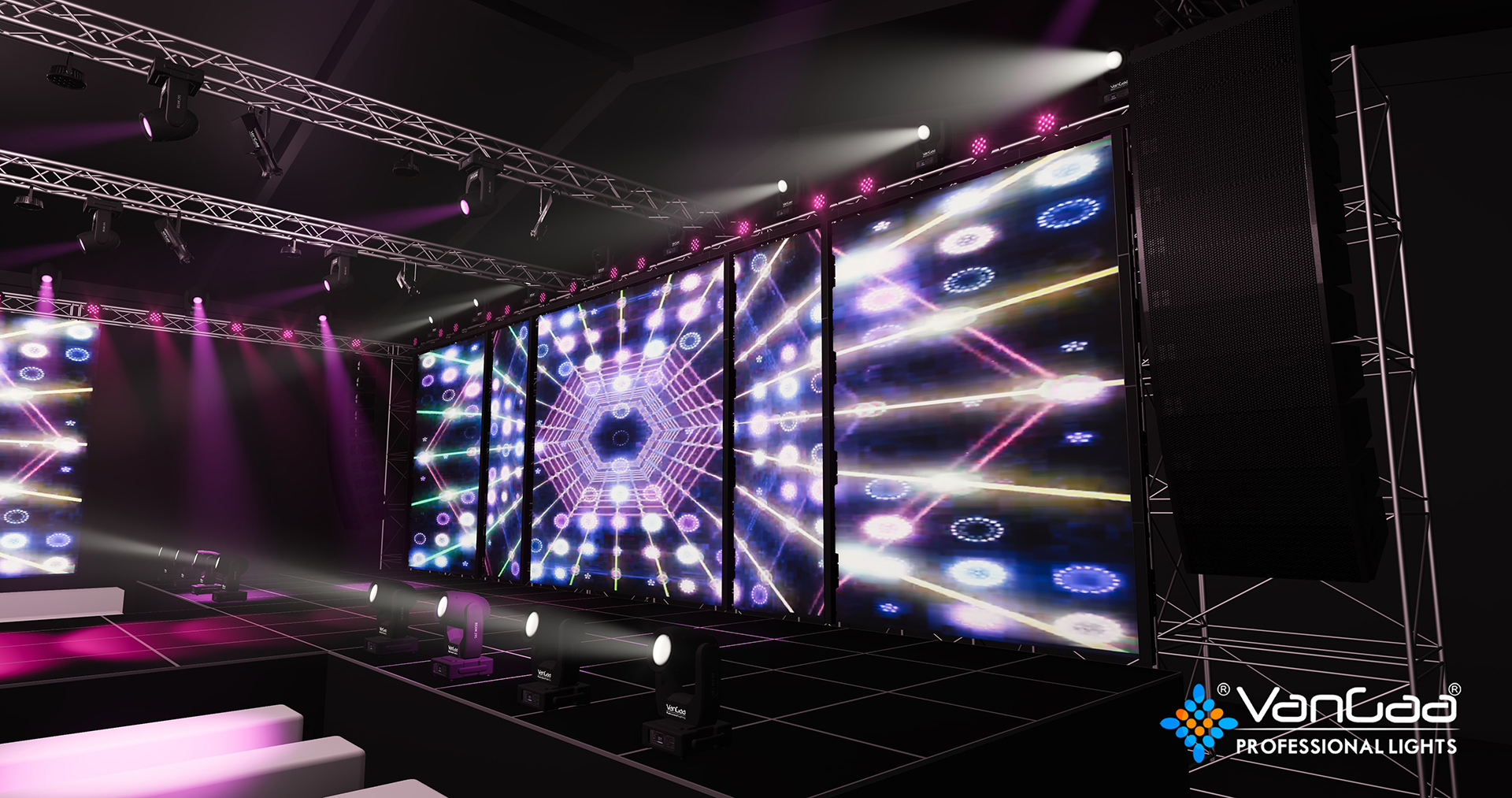

Background atmosphere light: Combine color wash lights, strobe lights, and LED screens. Through RGB full-color programming, achieve dynamic background color temperature gradients, creating a warm-cool contrast with the catwalk’s main light.
Core Equipment: 350W profile lights (front light area), 295W beam lights (accent lights), strobe programmable light strips (background area).
Parameter Standards:
Front light area: CRI Ra≥95, brightness uniformity >90%;
Dynamic follow-spot response delay ≤0.5 seconds to ensure light/shadow continuity when models move.
2. Optical Control Strategies
Dynamic Color Temperature Adjustment: Use DMX control system for stepless switching between 3200K-6000K, adapting to different clothing lines (e.g., cool hard light for business wear, warm soft light for evening gowns).
Precise Beam Control: Adopt 540° horizontal scanning technology to cover the entire catwalk show area, avoiding the "light-dark seam" issue of traditional lights.
Take a certain international fashion week catwalk show as an example:
Equipment Setup: Middle catwalk uses 350W profile light groups (front light), 16 units of 19° profile lights (auxiliary light) on both sides, and 8-meter LED color wash light strips in the background.
Effect Presentation:
Front light area has CRI Ra95, model skin tone restoration error <2%, and silk fabric gloss improved by 35%;
When dynamic follow-spots and color wash lights work together, audience attention concentration increases by 25%, and on-site video dissemination rate is 2 times higher than traditional plans.
Conclusion
The core of catwalk show lighting design lies in using high-color-rendering equipment as the technical base, achieving a perfect balance between functional lighting and atmosphere creation through precise optical control and artistic programming. In the future, with deeper development of intelligent control technology and new materials, lighting will not only be the "eyes" of the stage but also the "language" for telling brand stories.
