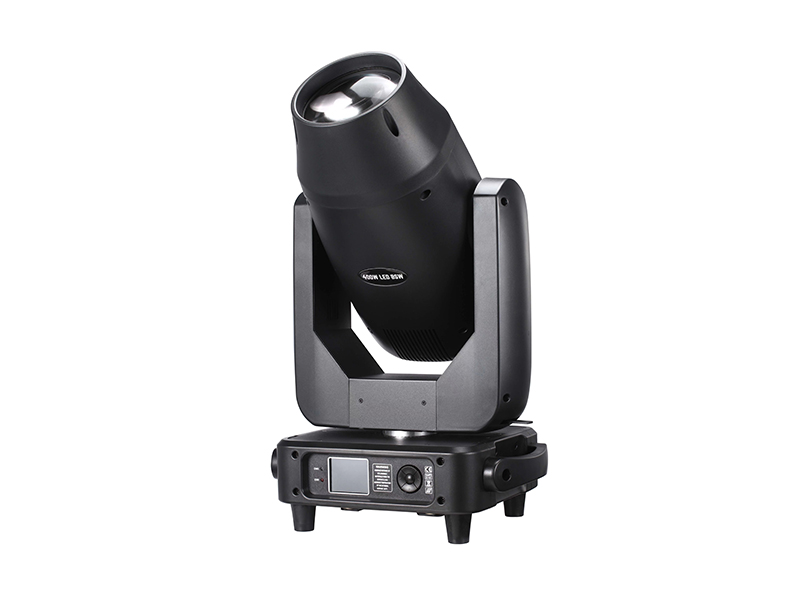

400W 3in1 Beam Moving Head Light

Product Features

·Various colors and patterns;

·Macro function: console reset function, self-propelled mode, master-slave mode;

·LCD display, key + touch dual operation mode;

·International standard DMX512, with RDM function, software can be upgraded online, dial the address code.

Technical Parameters

Light Source

·LED: 400W LED light source

·Light source life: 20, 000 hours

·Lumen illumination: 5 meters 120000 lm

Optical System

·Magnification angle: 4-35°

·Dimming system: 0-100% linear adjustment

·High-speed strobe: 0-30 times/second. Adjustable speed and strobe effect

·Focusing system: Linear adjustment from 4 meters to 50 meters

·Atomization system: 1 independent atomization effect, the light spot is soft and natural

·Color: 8 colors + white light, half color function

·Toning system: Linear CMY+CTO coloring system.

·Fixed mode: 12 fixed modes + white light

·Rotation pattern: 7 glass patterns, each glass pattern can be reversed independently

·Prism system: standard single six-row prism and 8 prism, each prism can be reversed independently

Run

·Horizontal scan: 540 degrees (16-bit precision scan) electronic error correction

·Vertical scan: 270 degrees (16-bit precision scan) electronic error correction

Control and Programming

·Control mode: international standard DMX512. With RDM function, software can be upgraded online, dial the address code

·Display mode: LCD display, key + touch dual operation mode

·DMX channel: 23CH

Electrical Specification

·Input voltage: AC110-240V, 50/60Hz

·Power consumption: 430W

Structural Specifications

·Lamp size: 380*270*650mm

·Net weight: 22.5kg

·Shell material: high temperature plastic

·Appearance color: black

Use environment

·Protection level: IP20

·Ambient temperature: -25-40℃

·Cooling system: fan forced cooling / heat sink

List of standard accessories

·1 DMX signal line

·1 power cord

·1 set of light hook suspension bridge

Optional accessories list

·Safety rope: choose the model you need, extra charge will be required

·Light hook: choose the model you need, additional charges are required

·Air box: choose the number you need to pack, additional charges are required
