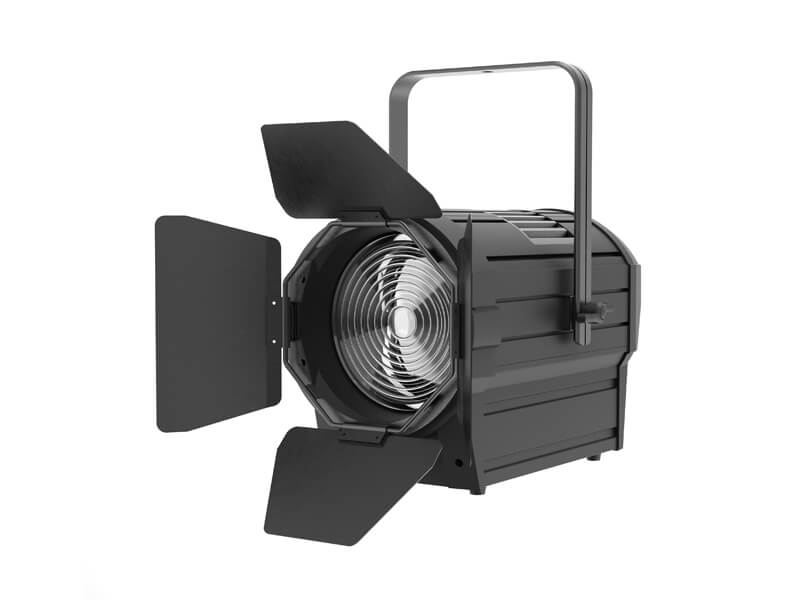

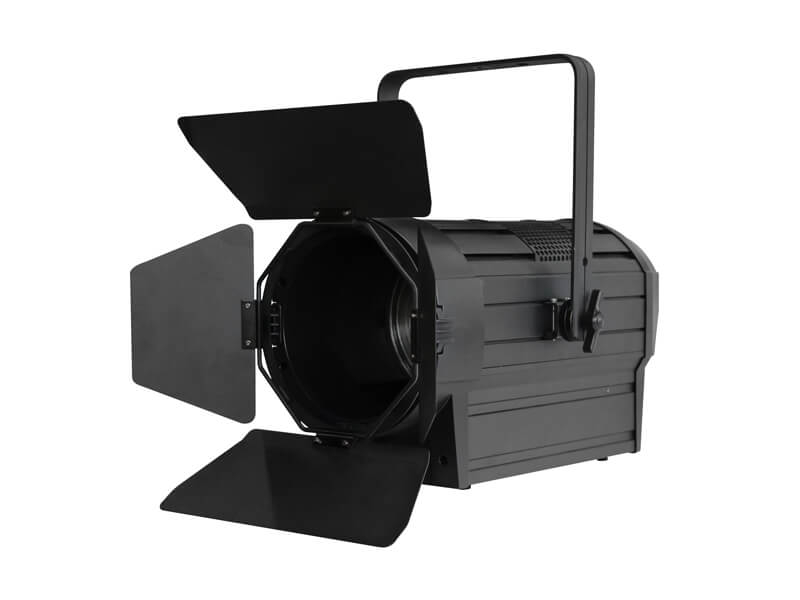

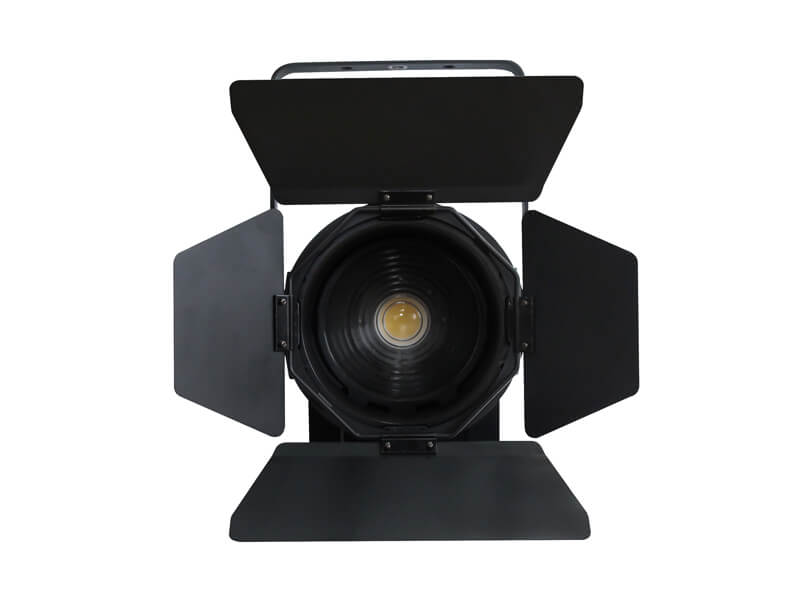

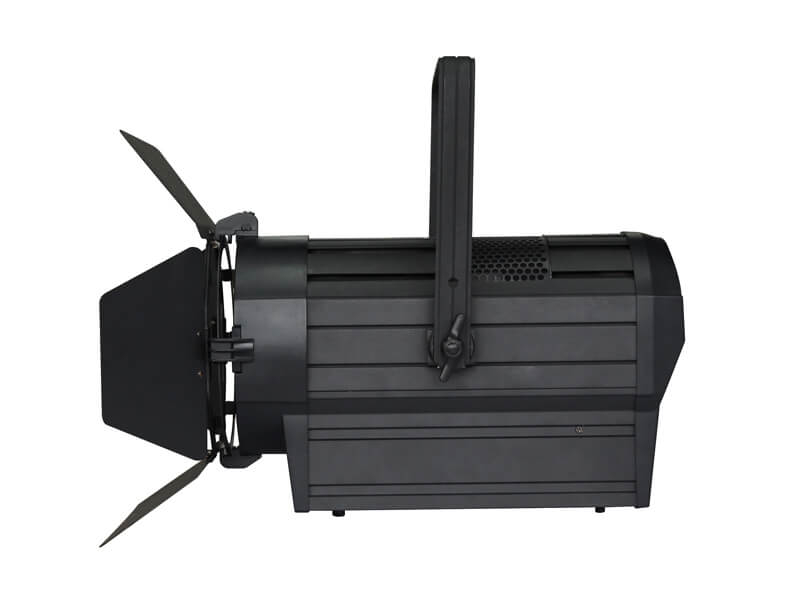

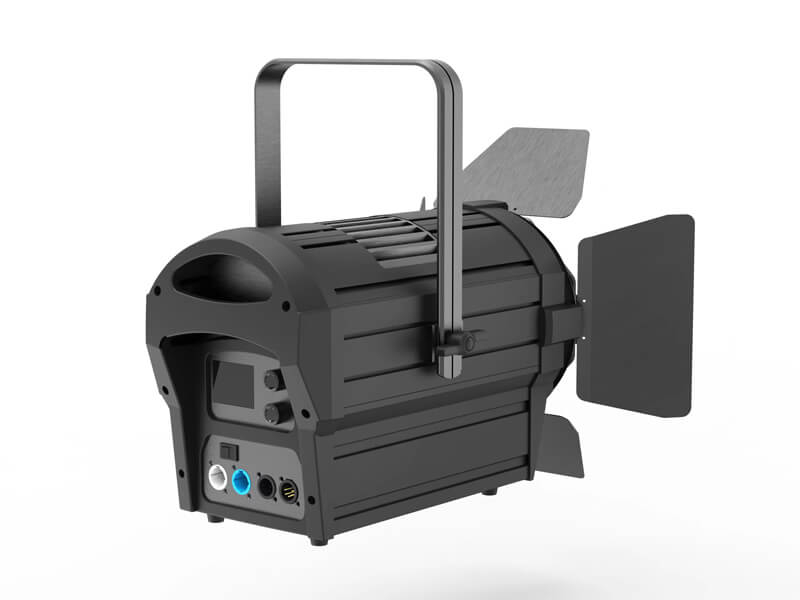

200W Fanless LED Fresnel Spot Light

·This television projector light equips high power 200W LED as the light source, it’s energy saving. This light without any fan and absolute quite. And it uses high efficiency optical lens, light soft. It’s a best choice for film and television performances, studio and other places.

Features

·The internal adopts full copper radiator large area, good heat dissipation, ensure the lifespan of the LED Lamps;

·Without fan, quite;

·Through efficient optical lenses, with special heat dissipation design, make the light is downy, small stray light, no glare, eyes more comfortable;

·Use the LED video projector scheme, the light energy saving 80%;

·Because of almost no infrared radiation, it has greatly improve work environment.

Technical Specifications

Light Sources

·LED: 1pc 200W 3200K/5600K LED

·Lifespan: 500,000h

·Color: warm white/cold white

Optics

·Beam angle: 15-60degree

·Dimmer: 0-100% linear dimmer

·CRI of white: Ra>95

·Color temperature: 3200K/5600K

Light Output

·Every color output: full 200W

·Optimal projection distance: 4-7m

Control

·Control mode: DMX-512; Auto run; Demo; Master/slave

·DMX channel: 1CH, 2CH

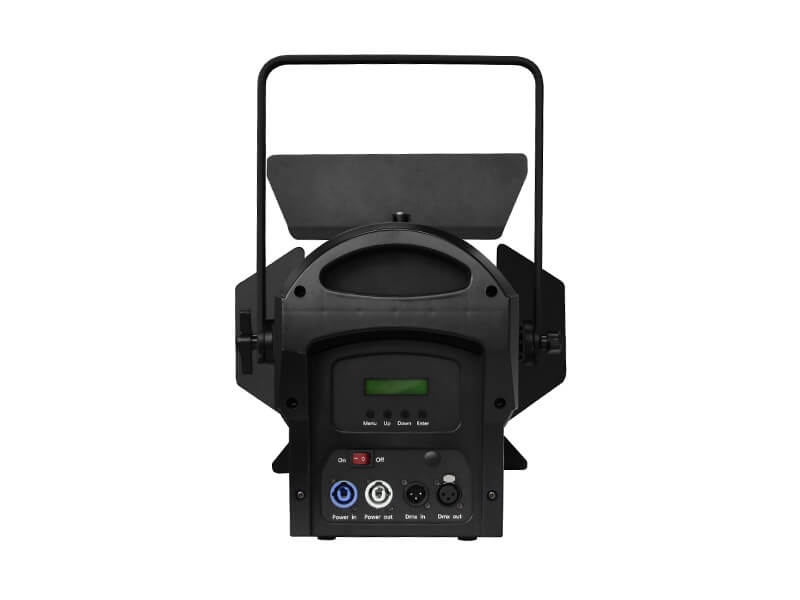

·Display of control panel: LCD display + 4 buttons

Power Supply

·Related voltage: AC100V-240V, 50/60Hz

·Related power: 220W

Construction

·Body dimension: D584*W352*H293mm

·Net weight: 12kg

·Shell color: black

·Shell material: aluminium die casting

Working Environment

·Working temperature: -25-40℃

·Cooling: copper tube convector , no fan

·Protection rating: IP20

Standard Configuration Spare Part List

·Cable: 1pc 3-pin DMX cable, 1pc power cable with plug(America standard, Euro standard, or other standard)

·Barn door: 1pc stand barn door

·User manual: English version user manual

Optional Configuration Spare Parts List

·Clamps: different style clamps optional (choose from VanGaa homepage “Accessaries series”)

·Safety rope: different size safety ropes optional (choose from VanGaa homepage “Accessaries series”)

·Stand: 1.5m hand change stand, 2.4-4m hand change stand

Package

·Carton board package size: 630*530*510mm(1pc/carton) [c:19-09-03]

·N.W/G.W: 12kg/15kg

Selling Maintain Spare Parts List

·Switching power supply: VG-DL200W-fanless-P

·LED lamp board: VG-DL200W-fanless -L

·Main board: VG-DL200W-fanless-M

·Drive board: VG-DL200W-fanless-D
