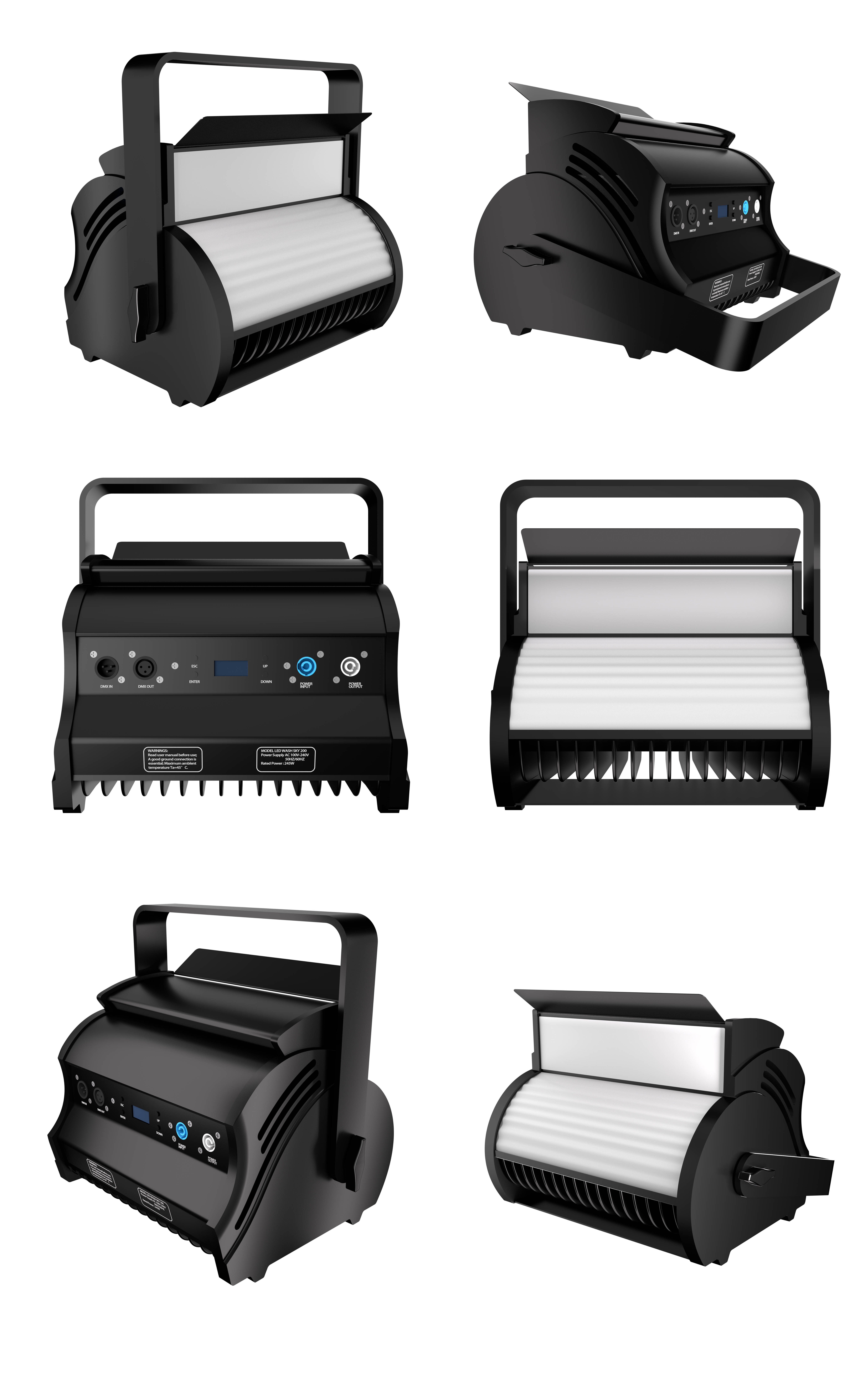

VG-LB250G
VanGaa
VG-LB250G
2023-06-15
Selling

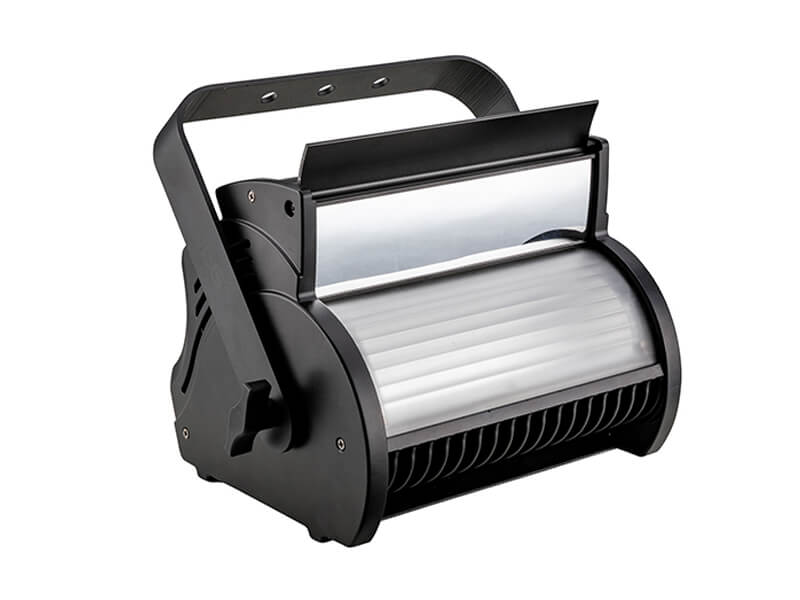

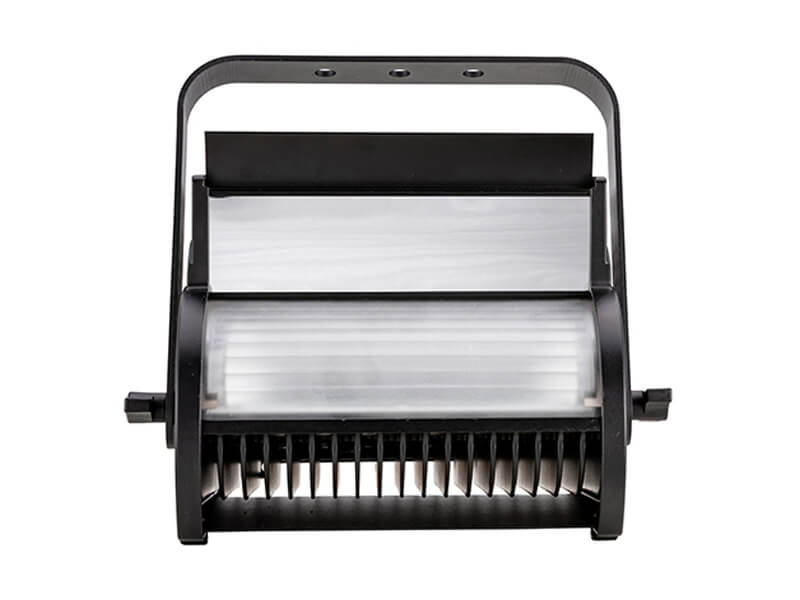

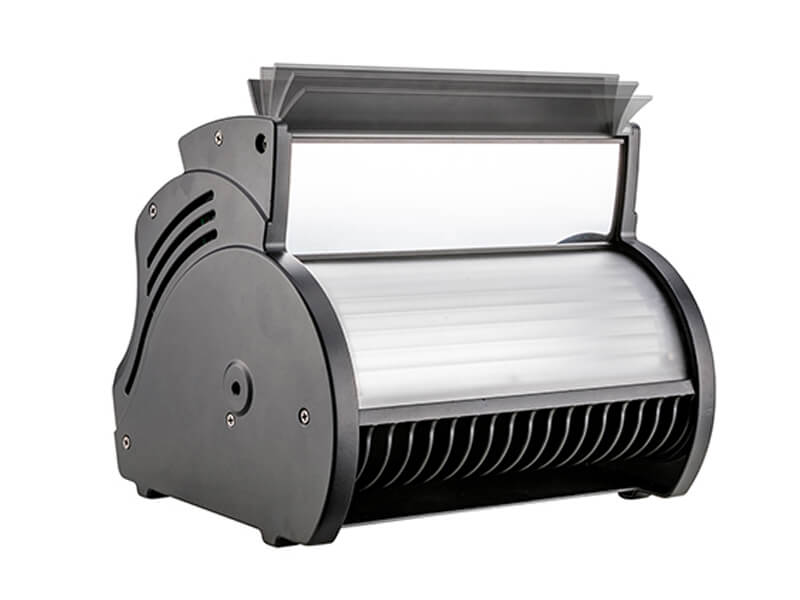

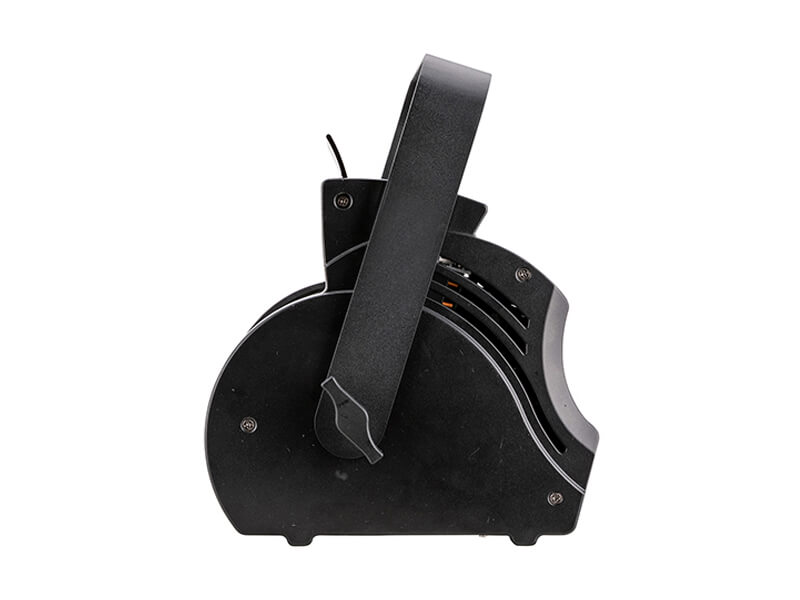

·This LED cyclorama light adopts plate material shell made with beautiful shape, high efficiency and energy saving, durability, it is suitable for indoor use. This product strictly according to CE standard design and production, complete with international standard DMX512 agreement, both single machine control, also can be controlled by connected with, suitable for large art performance, theatres, studio, discos and other places of use. It’s special designed for the stage curtain, wall wash and other using. It’s widely used for touring performance, construction, lighting, theater, discos, bars and other entertainment places.
Features
·7CH DMX control channel modes, digital show control panel;
·DMX512, Sound active, auto-run and master/slave four kinds control mode;
·IP20 protect rating;
·With strobe stage effect;
·Long lifespan high brightness LEDs can reach to 50,000hours;
·High-efficiency, power-saving, low heat.
Technical Specifications
Light Sources
·LED: 210W RGBIL 5in1 LED lamps
·Lifespan: 50000h
·Color: RGB+Indigo+Lime 5 color mixing
·Color temperature: 2700K-6500K
Optics
·Dimmer: 0-100% linear dimmer
·Strobe: 1-25 times/second
·CRI: >95Ra
Light Output
·Optimal projection distance: 5-8m

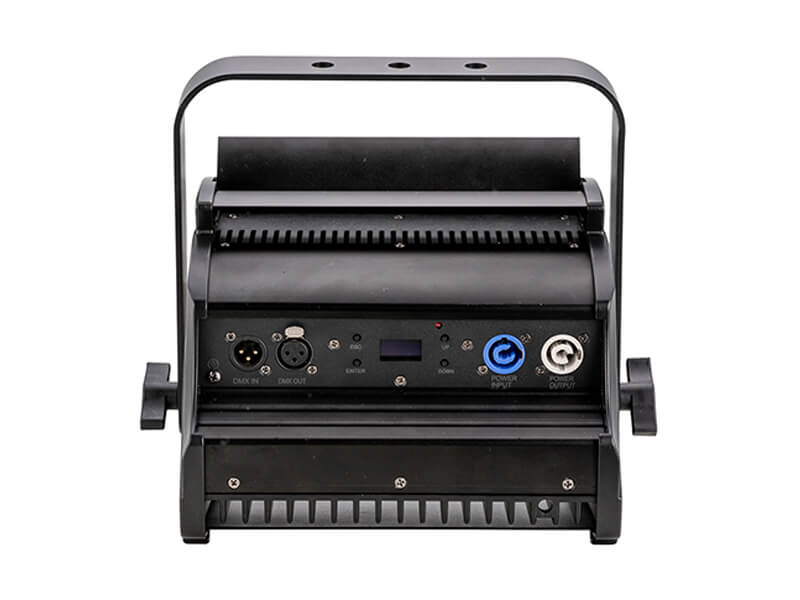

Control
·Control mode: standard DMX-512; Master/slave; Demo
·DMX channel: 7CH
·Display of control panel: 4 buttons+OLED display
Power Supply
·Related voltage: AC100V-240V, 50/60Hz
·Related power: 250W
Construction
·Body dimension: D263*W226*H284mm
·Net weight: 9.5kg
·Shell color: black
·Shell material: aluminium alloy
Working Environment
·Working temperature: -25-40℃
·Cooling: high quality radiator, no fan
·Protection rating: IP20
Standard Configuration Spare Part List
·Cable: 1pc XRL 3-pin(5pin is optional) DMX cable, 1pc power cable with plug(America standard, Euro standard, or other standard)
·User manual: English version user manual
Optional Configuration Spare Parts List
·Clamps: different style clamps optional (choose from VanGaa homepage “Accessaries series”)
·Safety rope: different size safety ropes optional (choose from VanGaa homepage “Accessaries series”)
Package
·Carton board box package size: 700*300*280mm (1pc/case) [f:19-07-05]
·N.W/G.W/V.W: 10kg/12kg/12kg
·Flight case package size: 930*710*570mm(4pc/case) [with clamp space. without spare part cell] [c:19-03-28]
·N.W/G.W/V.W: 44kg/79kg/72kg
Selling Maintain Spare Parts List
·Switching power supply: VG-LB250G-P
·LED lamp board: VG- LB250G-L
·Main board: VG-LB250G-M
·Drive board: VG-LB250G-D
