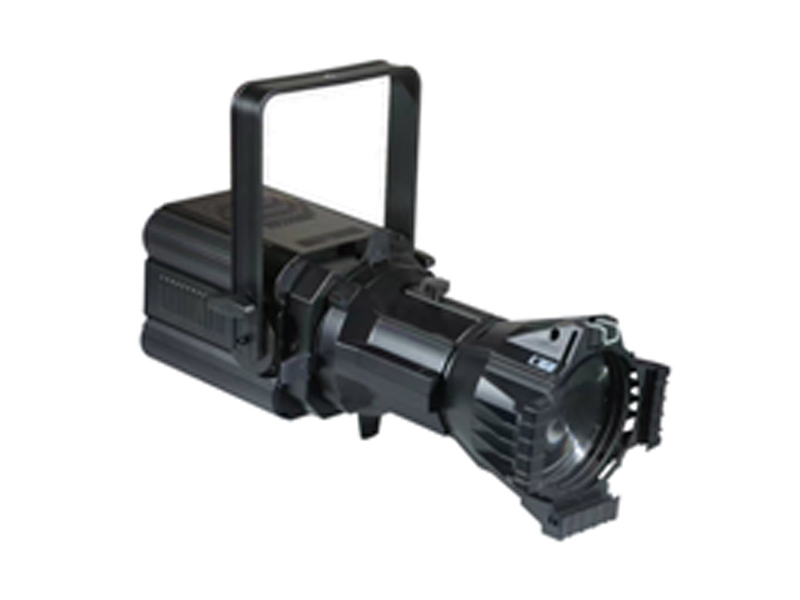

300W Digital LED leko Fixed Lens Profile Spot Light LED ellipsoidal spotlight

-Model: VG-LVF310A
-Light output: 300W
-Color: 3200K/5600K
-Beam angle: 19/26/36/50°
-CRI: 90+
Quantity:
  • VG-LVF310A
  • VanGaa
  • VG-LVF310A
  • 2015-01
  • Selling
  • This is a professional LED Fixed Lens Profile Spot Light. It uses high CRI and high power LED integrated lamp (COB lamp) as the light emitting element, adopting the United State ETC optical lenses. This light is saving energy and protecting environment, pure color temperature, it is a very suitable substitute of the traditional 750 profile light.

Features

  • High light efficiency, good color rendering, low glare value;

  • Long lifespan, energy conservation, environmental protection;

  • Linear dimmer by DMX signal, smoothly 0-100%;

  • Silent, owns good cooling system by copper radiation and fan(within 18db);

  • High CRI more than 90Ra.

Technical Specifications

Light Sources

  • LED: 1pc white 300W COB LED Lamp, 3200K/5600K optional

  • Lifespan: 500,000h

  • Color: CW/WW

Optics

  • Beam angle: 19degree(26degree/36degree/50degree optional), fixed lens

  • Gobo clip: 1pc gobo clip with steel gobo optional

  • Dimmer: 0-100% linear dimmer

  • Strobe: 1-25 times/second

Light Output

  • Luminous flux: 25200 Lm

  • Illuminance: 34200 Lux (2m 19° 3200K)

  • Optimal projection distance: 4-20m

Movement

  • Focus: Manual

  • Gobo clip: Manual

Control

  • Control mode: DMX-512; Demo; Master/slave

  • DMX channel: 3CH

  • Display of control panel: digital LCD display

  • DMX In/Out: 3P-XLR DMX In/Out, DMX 512

Power Supply

  • Related voltage: AC100V-240V, 50/60Hz

  • Related power: 350W

Construction

  • Body dimension: D648*W194*H194mm

  • Net weight: 8kg

  • Shell color: black/white

  • Shell material: ABS

Working Environment

  • Working temperature: -25-40℃

  • Cooling: Copper radiation and Fan

  • Protection rating: IP20

Equipment Optional Configuration

  • Gobo clip: 1pc gobo clip

  • Gobo: steel gobo, Gobo size: inner diameter 60mm, outer diameter71.6mm

  • Barn doors: 1 set barn doors

  • Colored paper clip: 1 set colored paper

Standard Configuration Spare Part List

  • Cable: 1pc 3-pin DMX cable, 1pc power cable with plug(America standard, Euro standard, or other standard)

  • User manual: English version user manual

  • Clamp bridge: 1 set clamp bridge

Optional Configuration Spare Parts List

  • Clamps: different style clamps optional (choose from VanGaa homepage “Accessaries series”)

  • Safety rope: different size safety ropes optional (choose from VanGaa homepage “Accessaries series”)

Package

  • Carton board box package size: 800*370*360mm(1pc/carton)

  • N.W/G.W/V.W: 7kg/9kg/22kg

  • Carton board box package size: 800*740*360mm(2pc/carton)

  • N.W/G.W/V.W: 14kg/18kg/43kg

Selling Maintain Spare Parts List

  • Iris: VG-LVF310A-Iris

  • Gobo frame: VG-LVF310A-GF

  • Color paper frame: VG-LVF310A-CF

  • Switching power supply: VG-LVF310A-P

  • LED lamp board: VG-LVF310A -L

  • Main board: VG-LVF310A -M

  • Drive board: VG-LVF310A -D

VG-LVF200A 5degree

VG-LVF200A 10degree
