VG-HTC550C
VanGaa
VG-HTC550C
2021-09-25
Selling

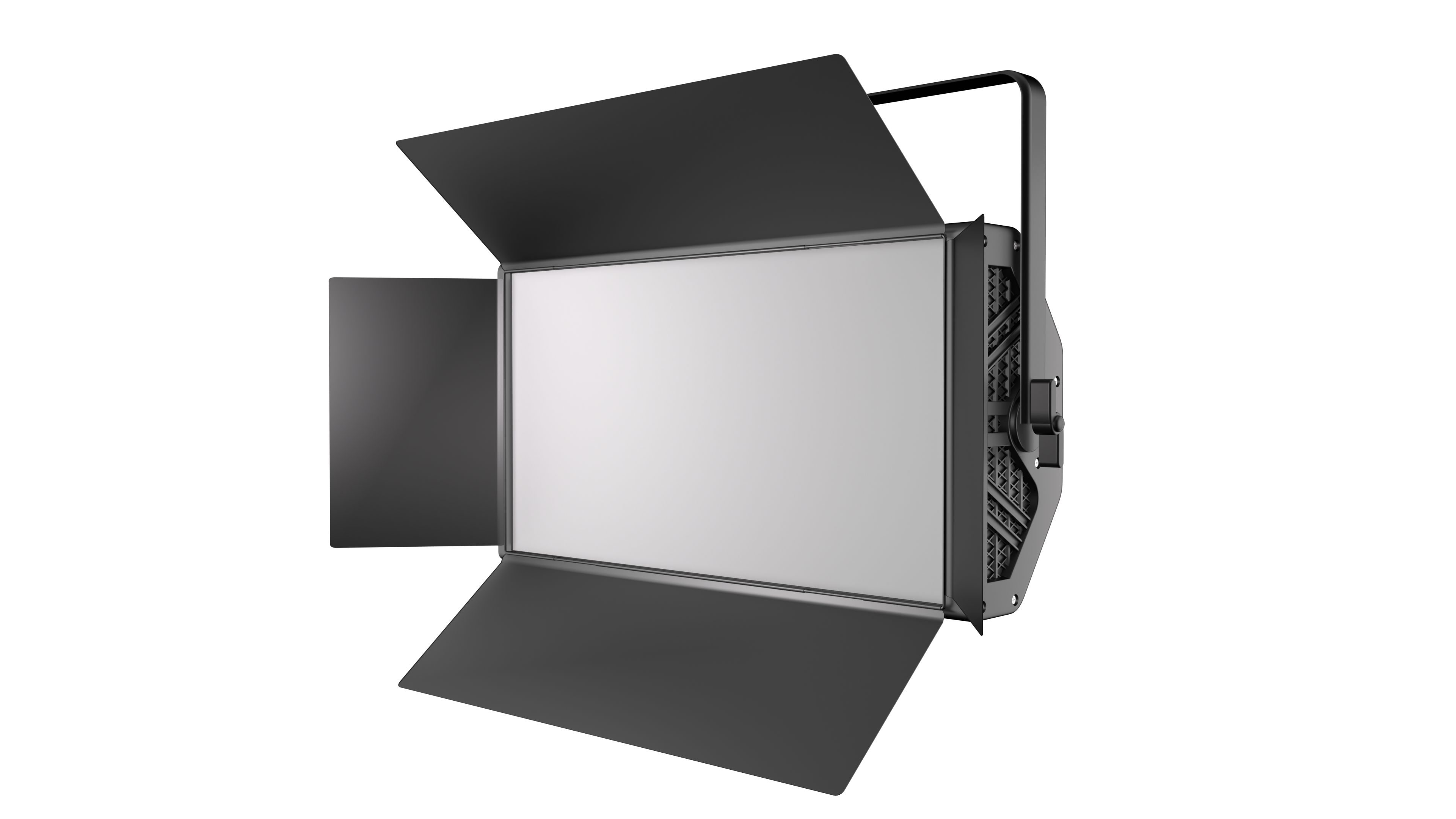

·Based on the LED Film and Television Flat Light, using high brightness SMD LED chips beads matrix arrangement of large area, through the whole aluminum shell to realize heat dissipation naturally. This light has high brightness, good head dissipation, ultra-quiet and other features. It can satisfy the requirement of indoor and outdoor movie filming for the lighting layout. It is a good substitute of the traditional three basic colors light.
·Features
·The light’s lighting function is controlled by DMX-512, very convenient;
·Using bead LED chips, pure color temperature, can realize 0-100% linear dimmer;

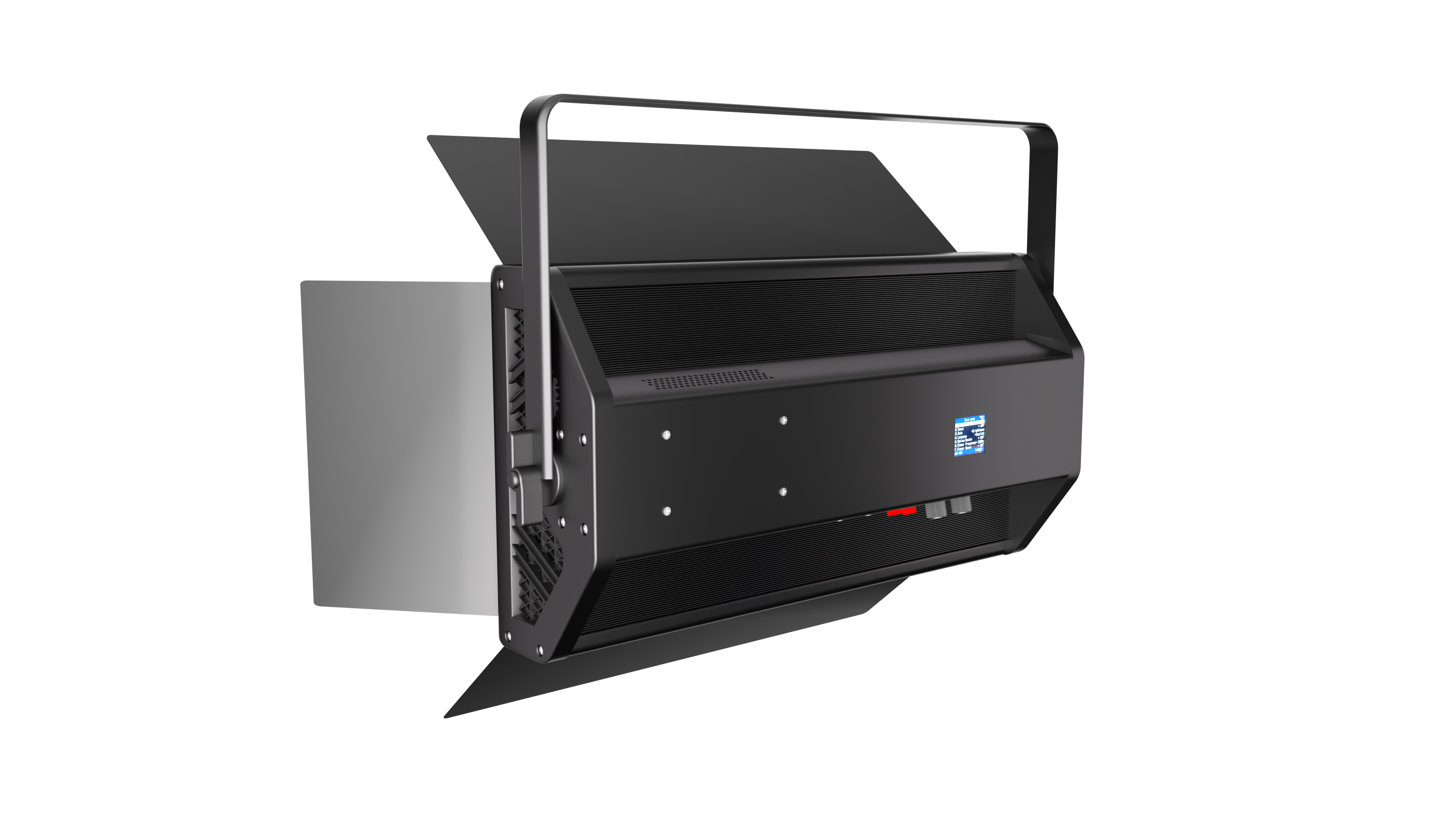

·The light body adopts outside frame design, the modeling is beautiful, installation very convenient, safe and reliable;
·The color temperature can be adjusted from warm white to cold white.
Technical Specifications
Light Sources
·LED: 1200pcs 0.5W 2835 SMD high CRI and high brightness LED bead chips
·Lifespan: 50,000hours
·Color: from warm white to cold white
Optics
·Beam angle: 120degree
·Dimmer: 0~100% linear dimmer
·CRI: Ra≥95
·Color temperature: 3200K-5600K adjustable
Light Output

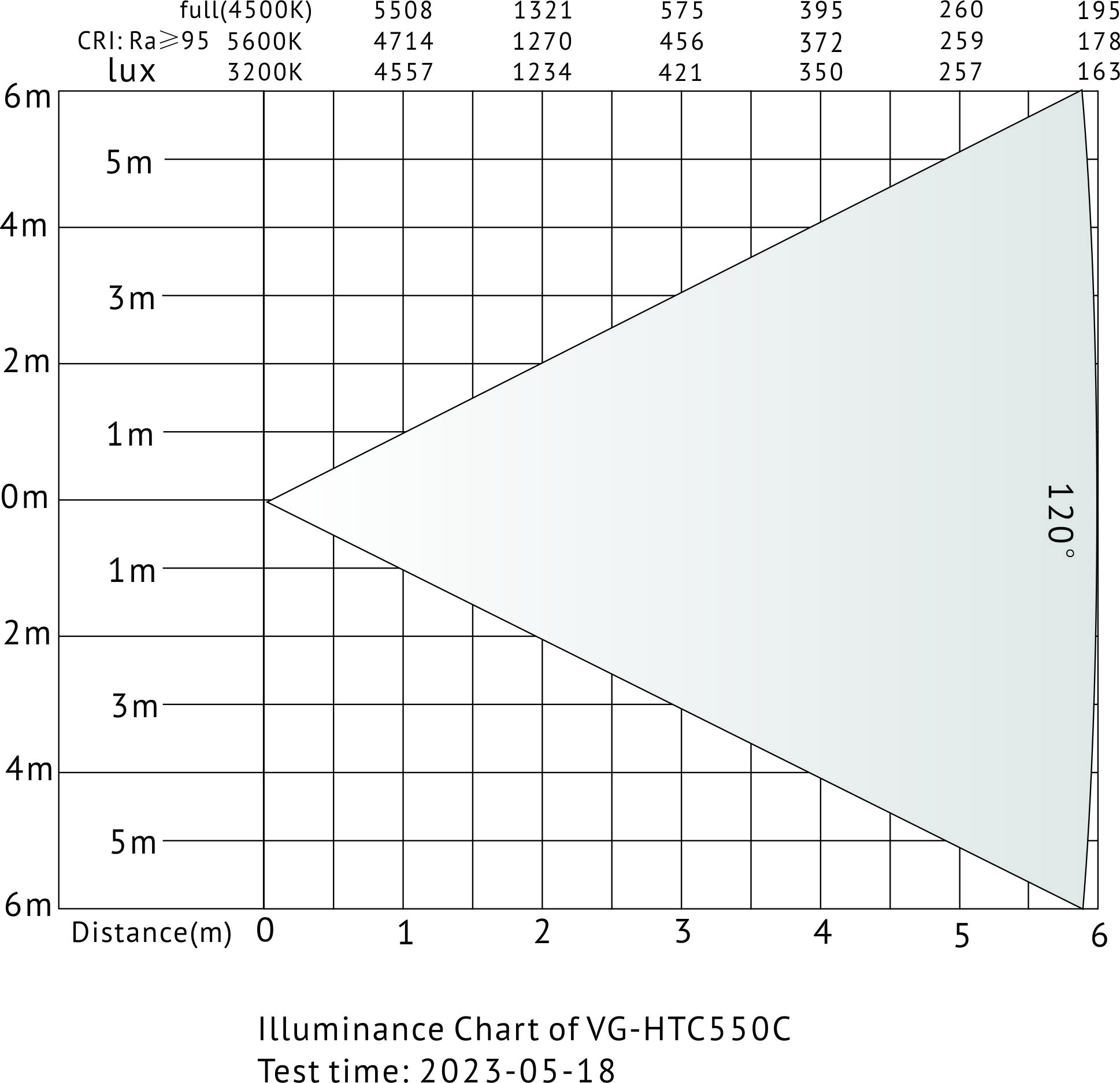

·Iluminance: full, 1290lux@2m; 3200K, 1534lux@2m; 5600K, 1210lux@2m
·Light output power: 180-200W
Control
·DMX channel: 3CH, 4CH
·Control mode: DMX-512, Demo mode, Manual

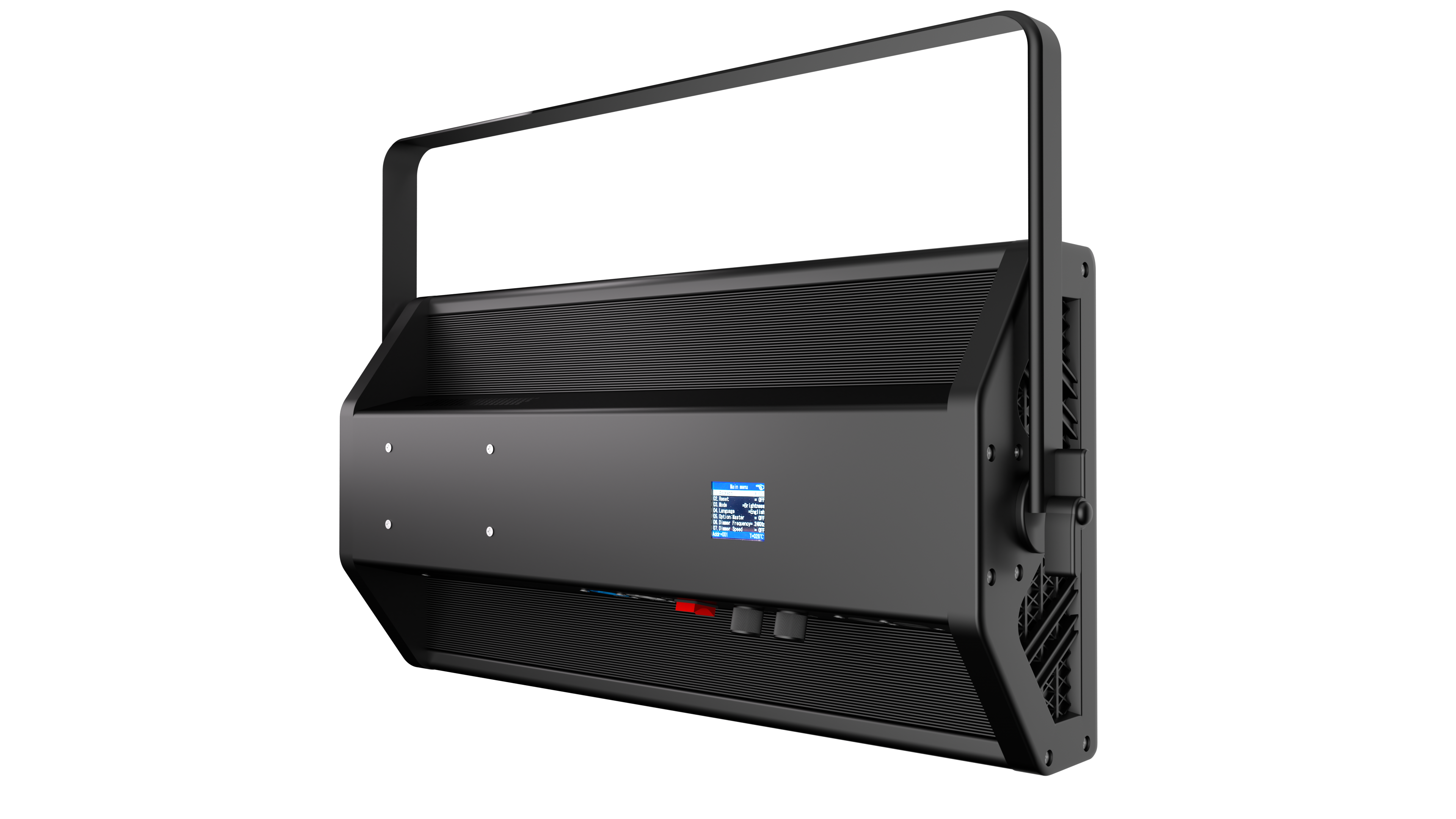

·Control panel: LCD display + 2 rotation buttons
Power Supply
·Related voltage: AC100V-240V, 50/60Hz
·Power consumption: 200W-190W
Construction
·Body dimension: D480*W270*H127mm
·Net weight: 9.5kg
·Shell color: black
·Housing material: aluminum alloy
·Working Environment
·Working temperature: -25-40℃
·Cooling: aluminum radiator and light body
·Protection rating: IP20
Spare Parts

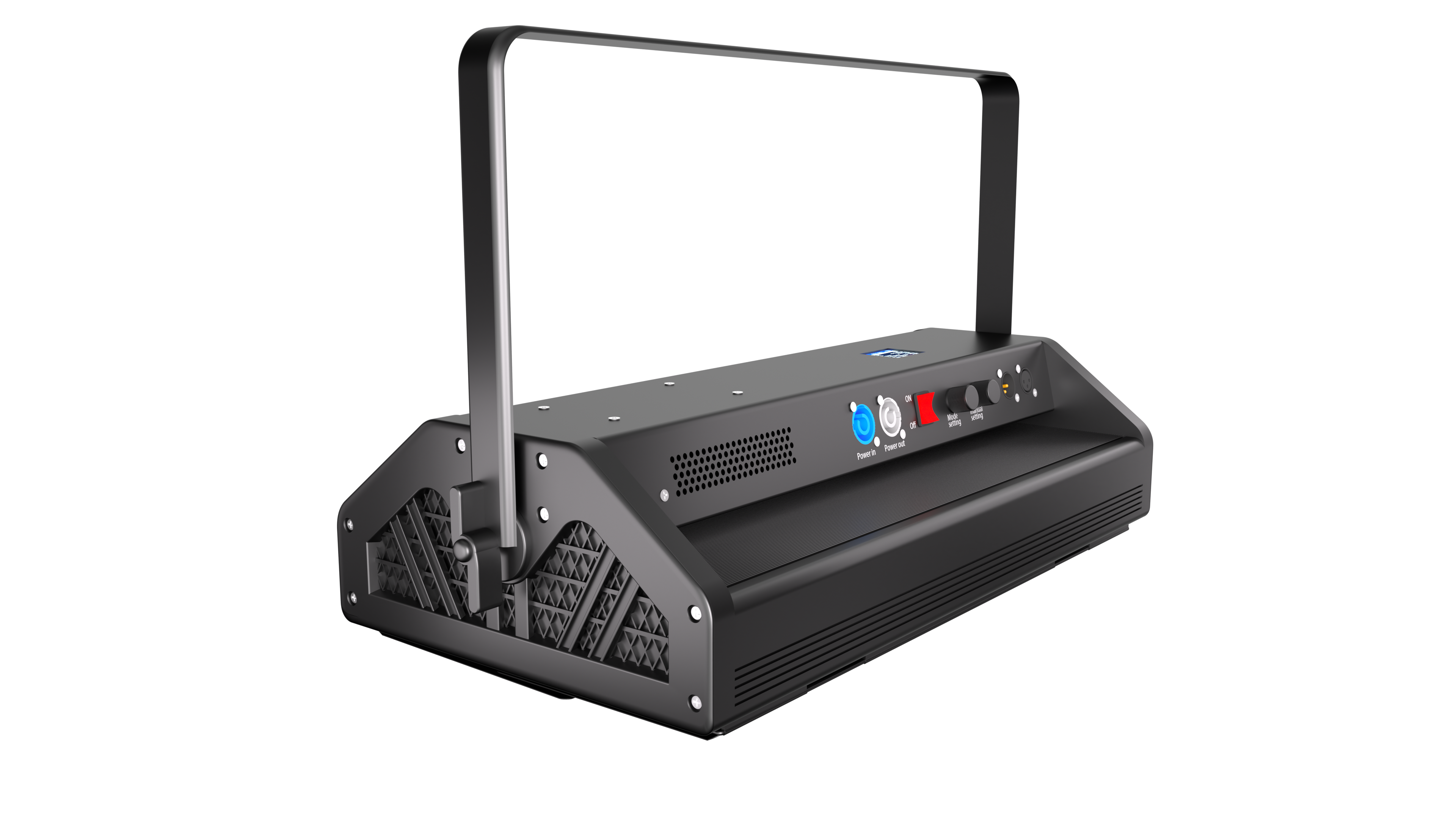

·Cable: 1set DMX in and DMX out signal cable, and 1set Power in and Power out power cable with plug [standard configuration]
Package
·Carton board box package size: 665*280*395mm(1pc/carton)
·N.W/G.W/V.W: 9.5kg/11kg/16kg
·Flight case package size: 780*530*510mm(4pc/case) [c:18-05-08]
·N.W/G.W: 36kg/63kg [need confirm the weight]
·Flight case package size: 1080*530*510mm(6pc/case) [yg:18-12-21]
·N.W/G.W: 54kg/85kg
·Flight case package size: 900*1100*400mm(10pc/case) [need confirm]
·N.W/G.W: 95kg/125kg
Selling Maintain Spare Parts List
·Switching power supply: VG-HTC550C-P
·LED lamp board: VG-HTC550C-L
·Main board: VG-HTC550C-M
·Drive board: VG-HTC550C-D
