VG-HTC972C: 200W 0dB Fanless

Name: VG-HTC972C | 200W 0dB Fanless Bi-Color LED Soft Video Studio Panel Light
Brand: VanGaa
Rating: 5.0 (2 reviews)

Bi-Color LED Soft Video Studio Panel Light

Engineered specifically for television broadcast studios, virtual XR production stages, interview newsrooms, and high-end video conference facilities. Features a 648pcs high-density SMD LED matrix, 2700K to 6500K tunable CCT with Ra≥97 / TLCI≥98, true 0dB fanless passive natural aluminum cooling, and 4K-32K broadcast camera flicker-free dimming.

Color Rendition

Ra ≥ 97 | TLCI ≥ 98

Acoustic Level

0dB Silent Passive Cooling

Tunable CCT Range

2700K - 6500K Linear

Optical Distribution

120 deg; Soft Wide Spread

Key Engineering Advantages

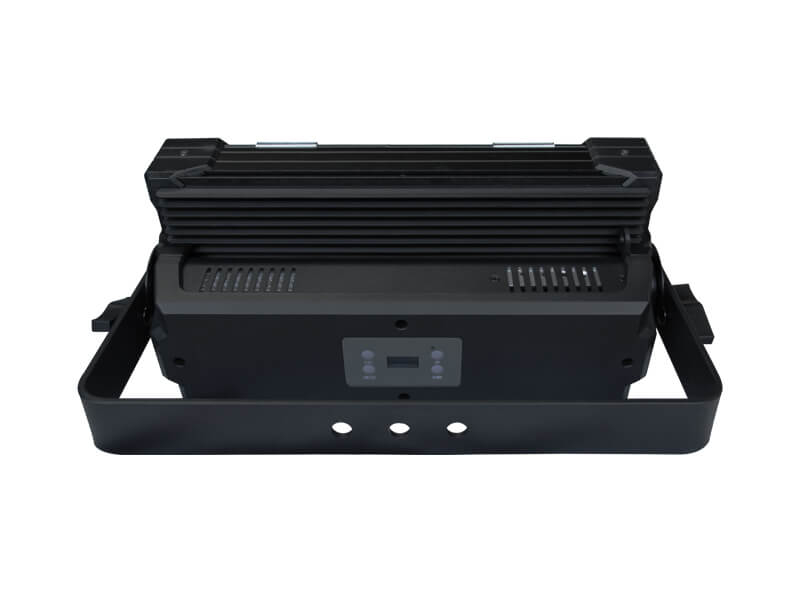

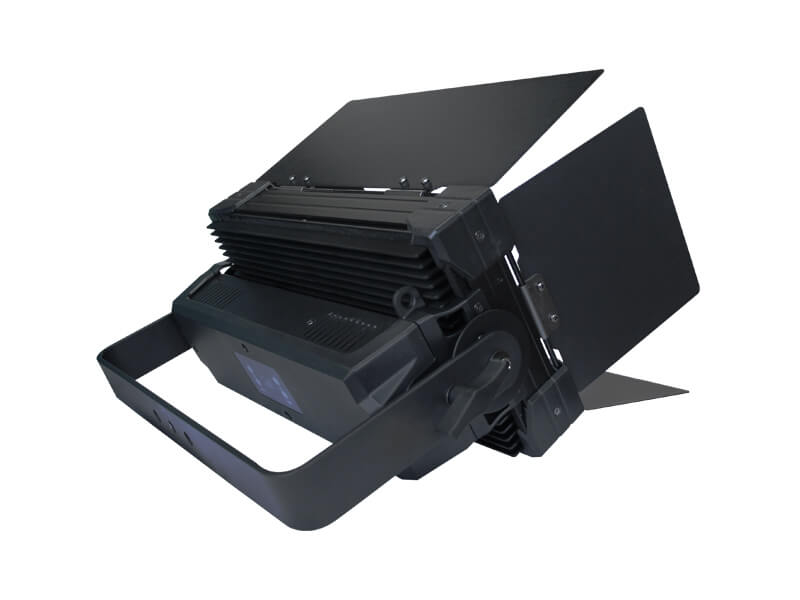

0dB Natural Convection Heat Sink

Monolithic die-cast aluminum chassis dissipates heat purely through airflow convection, guaranteeing zero acoustic background noise near high-sensitivity microphones.

Broadcast-Grade Ra≥97 & TLCI≥98

High-density SMD LED array delivers continuous spectral output from 2700K to 6500K with broadcast-grade skin tone reproduction and zero color distortion.

Flicker-Free 4K-32K Broadcast Capture

Advanced high-frequency PWM dimming circuitry supports high-speed camera shooting and live broadcasting with zero flicker and 4 optional smooth dimming curves.

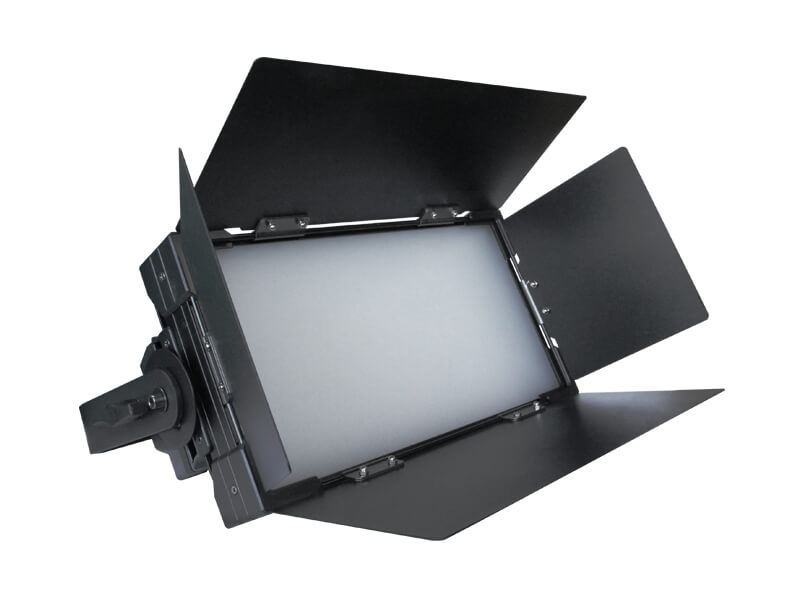

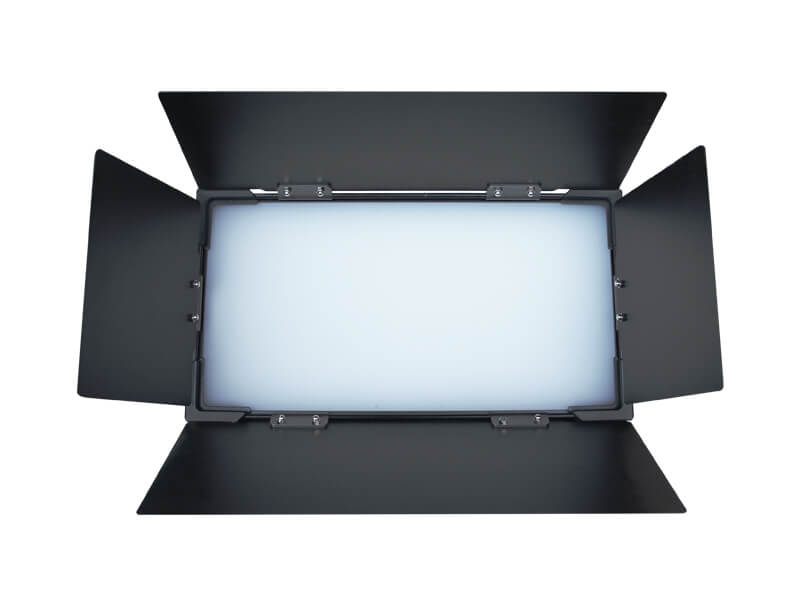

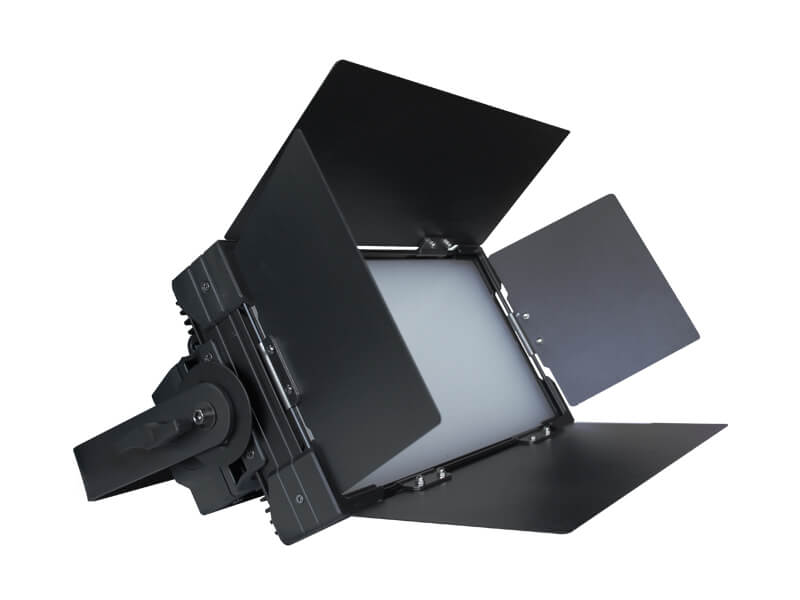

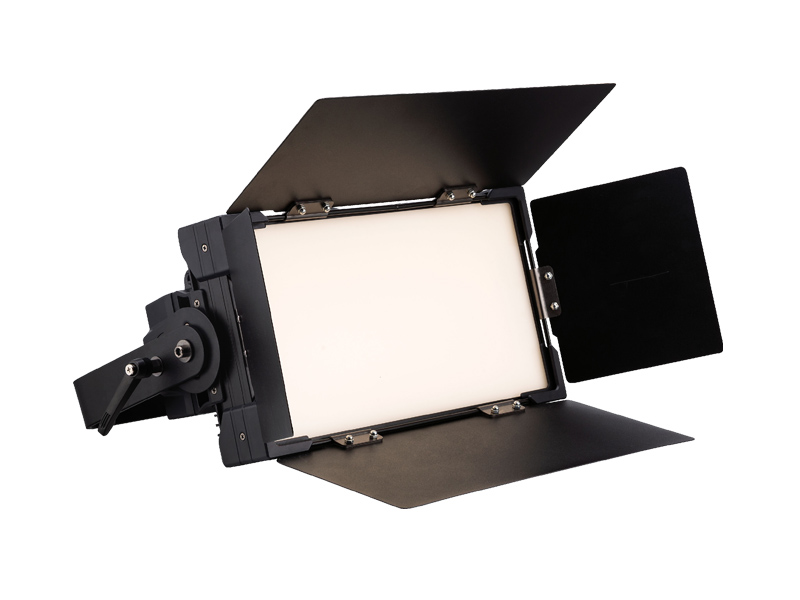

120 deg; Soft Beam & Detachable Barndoor

High-efficiency optical diffuser produces shadowless, eye-friendly key/fill lighting, equipped with a 4-leaf metal barndoor and optional anti-glare honeycomb grid.

Technical Specifications

1. OPTICAL & LIGHT SOURCE SPECIFICATIONS
LED Emitter Array	648pcs High-Density SMD Matrix (324pcs 3200K Warm White + 324pcs 5600K Cool White)
Color Temperature (CCT)	2700K-6500K Linear Continuously Tunable (Optional RGBWW 1800K-10000K)
Color Rendering Index	CRI Ra≥97 \| TLCI≥98
Optical Beam Angle	120 deg; Soft Wide Spread (170 deg; Field Angle with Frosted Diffuser)
Luminous Output	2,774 Lux @ 1m (Full Output) \| Optical Uniformity > 90%
LED Rated Lifespan	50,000 Hours
2. CONTROL, DIMMING & PROGRAMMING
Control Protocols	Standard DMX512, RDM Bi-directional Feedback, Manual Rotary Encoders, Master-Slave
DMX Channel Modes	4CH / 5CH (Bi-Color mode) \| 9CH (Optional RGBWW mode)
Dimming Performance	0-100% 16-bit Smooth Dimming (4 Selectable Curves: Standard, Incandescent, Linear, S-Curve)
Display Interface	TFT / LCD Color Display with 4 Navigation Buttons + Dual Precise Knobs
3. ELECTRICAL & THERMAL ACOUSTICS
Input Voltage & Frequency	AC 100V – 240V, 50/60Hz (Worldwide Auto-sensing Switching Power Supply)
Power Consumption	200W Rated Power (250W Max Peak) \| Power Factor PF > 0.98
Thermal Dissipation	100% 0dB Fanless Natural Convection Aluminum Radiator (Zero Fan Noise)
Connectors	PowerCON In/Out (Daisy-chain loop) \| 3-pin & 5-pin XLR DMX In/Out
4. HOUSING, DIMENSIONS & ACCESSORIES
Housing Material	Heavy-Duty Die-Cast Aluminum Alloy Body with Scratch-Resistant Matte Black Coating
Fixture Dimensions (L×W×H)	542266125mm (21.310.54.9 in)
Net Weight	9.0 kg (19.8 lbs) (Ideal for studio ceiling pantographs & light stands)
Included Standard Parts	1pc PowerCON cable, 1pc DMX signal cable, 1pc Heavy-duty mounting yoke, 1pc Safety cable, 1pc User manual
Optional Accessories	Detachable 4-Leaf Metal Barndoor, 45 deg; Honeycomb Softgrid, Studio Road Flight Case

Professional Studio & Broadcast Applications

TV Broadcast Newsrooms Virtual XR Production & Green Screen Studios High-End Video Conference Facilities Live Streaming & E-Commerce Podcasting Interview & Talk Show Theaters

Plan Your Broadcast Studio Lighting with VanGaa

Contact our lighting engineering team for photometric lux calculations, studio grid layout design, wholesale pricing, and customized OEM/ODM project support.

WhatsApp Direct: +86 138 2512 8583 Official Email: info@vangaa.com

·Based on the LED Film and Television Flat Light, using high brightness SMD LED chips beads matrix arrangement of large area, through the whole aluminum shell to realize heat dissipation naturally. This light has high brightness, good head dissipation, ultra-quiet and other features. It can satisfy the requirement of indoor and outdoor movie filming for the lighting layout. It is a good substitute of the traditional three basic colors light.

Features

·The light’s lighting function is controlled by DMX-512, very convenient;

·Using bead LED chips, pure color temperature, can realize 0-100% linear dimmer;

·The light body adopts outside frame design, the modeling is beautiful, installation very convenient, safe and reliable;

·The color temperature can be adjusted from warm white to cold white.

Technical Specifications

Light Sources

·LED: 324pcs 3200K warm white LED+324pcs 5600K cold white LED

·Lifespan: 50000hours

·Color: 2700K-6500K

Optics

·Beam angle: 170degree
