high lumen 100W led fresnel light for music studio

-Model: VG-PB100W
-Light output: 150W
-Color: 3200K/5600K
-Beam angle: 15-60°
-CRI: 95+
  • VG-PB100W
  • VanGaa
  • VG-PB100W

high lumen 100W led fresnel light for music studio

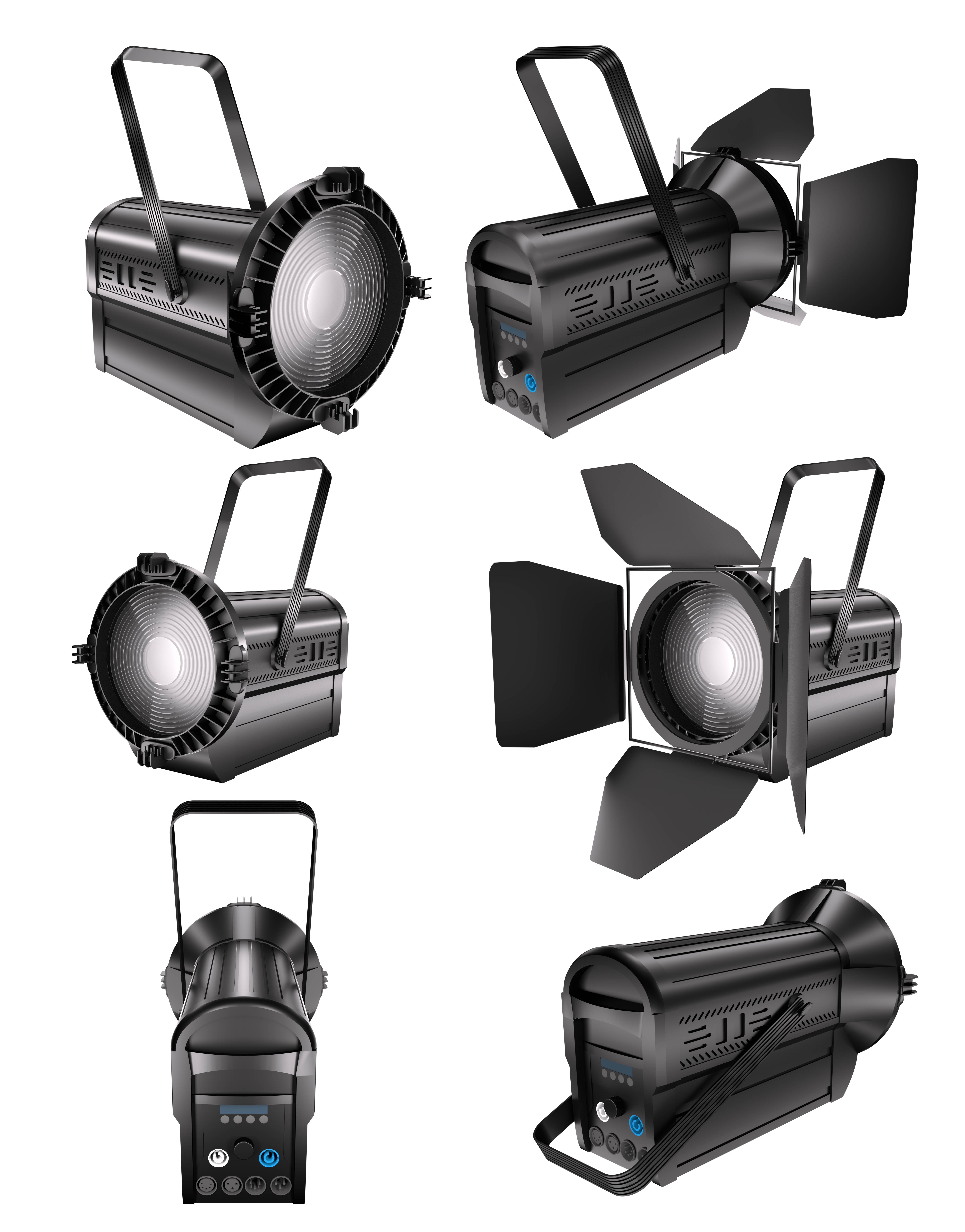

STAGE AND THEATER LIGHTING: The VanGaa PB100W lighting fixture is equipped with a 8-inch Fresnel lens and powered by a 100W LED engine. It produces a white wide, soft-edged beam for stage and theatre use at 3200K/5600K

MANUALLY ADJUSTABLE ZOOM: The adjustable Knob are fitted to adjust beam angles between 15 and 60 degrees allowing for a broad stage-filling wash to generating a concentrated pool of light.

STANDARD DMX-512 CONTROL: Offers smooth 0-100% dimming through DMX protocol and includes a LCD display menu to easily select a DMX address as well as any of the fixtures’ operating options.

LONG-LASTING PROFESSIONAL DESIGN: Powered by a high-powered LED bulb low power draw as well as minimal excess heat and designed with a robust aluminum case for a lasting and durable lighting solution.

PRODUCT SPECIFICATIONS: 8-inch Fresnel lens, CRI 95, 4-button LCD menu, 3-pin DMX In/out, Wired Digital Communication Network, powerCON In/Out to daisy chain power, Multi-voltage operation: AC 100-240V, 50/60Hz, 17.91” x 10.43” x 11.49” / 455x265x292mm, 16.53 lbs / 7.5 kg.


  • This television projector light equips high power 100W LED lamps as the light source, it’s energy saving. And it uses high efficiency optical lens, light soft. It’s a best choice for film and television performances, studio and other places.


  • The internal adopts full copper radiator large area, good heat dissipation, ensure the lifespan of the LED Lamps;

  • Through efficient optical lenses, with special heat dissipation design, make the light is downy, small stray light, no glare, eyes more comfortable;

  • Use the LED video projector scheme, the light energy saving 80%;

  • Because of almost no infrared radiation, it has greatly improve work environment.

Technical Specifications

Light Sources

  • LED: 1pc 100W COB LED Lamps

  • Lifespan: 500,000h

  • Color: CW, WW optional


  • Beam angle: 15-60degree

  • Dimmer: 0-100% linear dimmer

Light Output

  • Luminous flux: 3810

  • Illuminance: 678 Lux (6m 15°)

  • Optimal projection distance: 5-15m


  • Control mode: DMX-512; Auto run

  • DMX channel: 1CH, 2CH

  • Display of control panel: LCD display + 4 buttons

Power Supply

  • Related voltage: AC100V-240V, 50/60Hz

  • Related power: 150W


  • Body dimension: D455*W265*H292mm

  • Net weight: 7.5kg

  • Shell color: black

  • Shell material: aluminium die casting

Working Environment

  • Working temperature: -25-40℃

  • Cooling: Radiator and Fan

  • Protection rating: IP20

Standard Configuration Spare Part List

  • Cable: 1pc 3-pin DMX cable, 1pc power cable with plug(America standard, Euro standard, or other standard)

  • User manual: English version user manual

Optional Configuration Spare Parts List

  • Clamps: different style clamps optional (choose from VanGaa homepage “Accessaries series”)

  • Safety rope: different size safety ropes optional (choose from VanGaa homepage “Accessaries series”)


  • Carton board package size: 530*330*390mm(1pc/carton) [confirmed on 19-12-3]

  • N.W/G.W/V.W: 7.5kg/8.4kg/13kg

  • Flight case package size: 745*640*650(4pcs/flight case)

  • Net weight of flight case: 30kg

  • N.W/G.W/V.W: 24kg/54kg/63kg

  • Flight case package size: 1100*640*650(6pcs/flight case)

  • Net weight of flight case: 34kg

  • N.W/G.W/V.W: 36kg/70kg/92kg

Selling Maintain Spare Parts List

  • Switching power supply: VG-PB100W-P

  • LED lamp board: VG-PB100W-L

  • Main board: VG-PB100W-M

  • Drive board: VG-PB100W-D

PB200W led fresnel light lux chart
