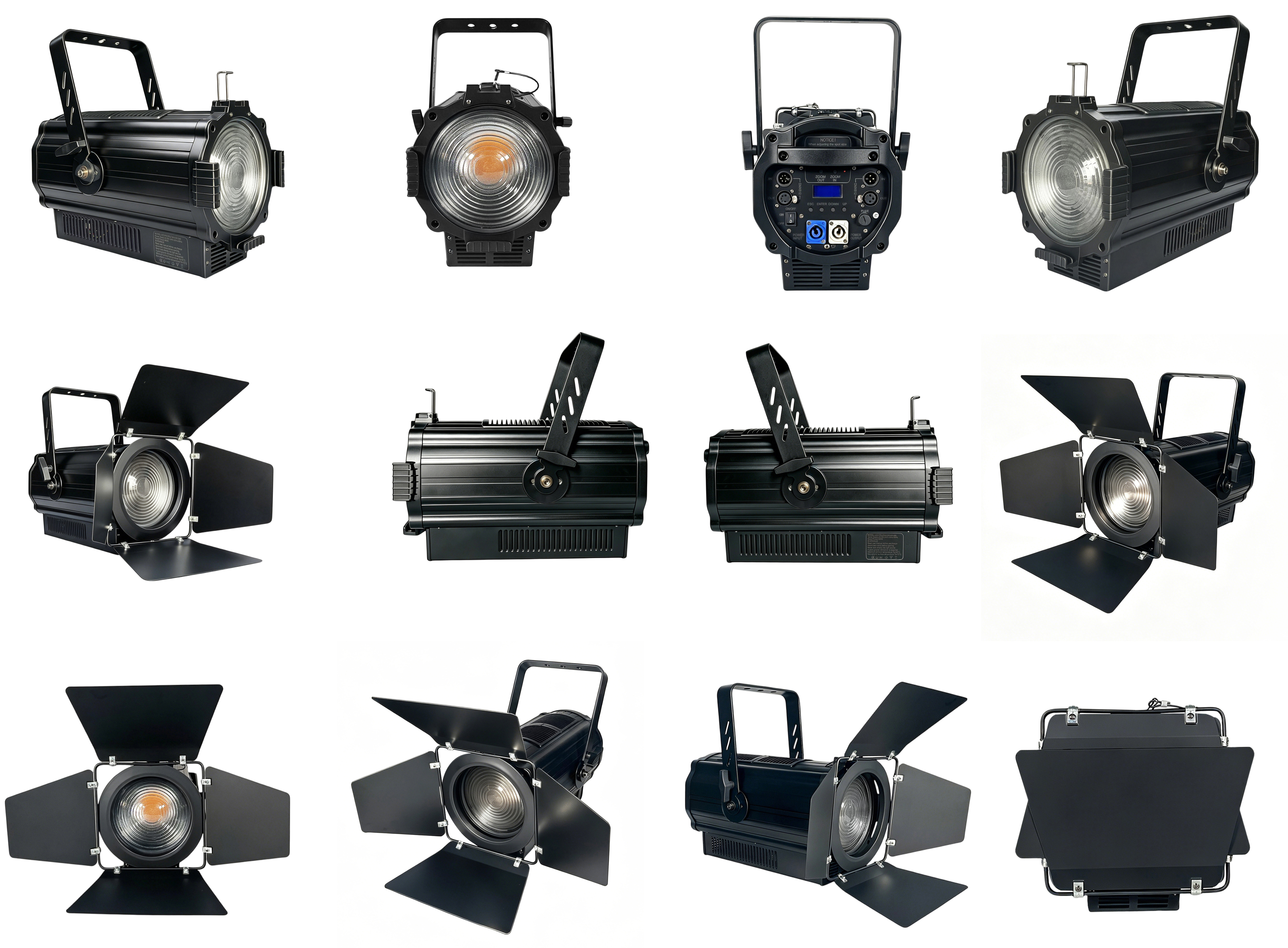

DMX Zoom 300W LED TV Studio Fresnel Continuous Light

-Model: VG-FL300W-D
-Light out put power: 300W
-Color temperature: 3200K/5600K
-CRI: more than 95Ra
-Net weight: 8.5kg
Availability:
Quantity:
  • VG-FL300W-D
  • VanGaa
  • VG-FL300W-D
  • 2021-10-20
  • Best selling

·This television projector light equips high power 300W LED lamps as the light source, it’s energy saving. And it uses high efficiency optical lens, light soft. It’s a best choice for film and television performances, studio and other places.

Features

·The internal adopts full copper radiator large area, good heat dissipation, ensure the lifespan of the LED Lamps;

·DMX adjust the beam angle of the zoom from spot to flood;

·Through efficient optical lenses, with special heat dissipation design, make the light is downy, small stray light, no glare, eyes more comfortable;

·Use the LED video projector scheme, the light energy saving 80%;

·Because of almost no infrared radiation, it has greatly improve work environment.

Technical Specifications

Light Sources

·LED: 1pc 300W COB LED Lamps

·Lifespan: 500,000h

·Color: CW, WW optional

·Color temperature: 3200K/5600K

Optics

·Beam angle: 15-60degree, DMX/motorize and manual zoom

·Dimmer: 0-100% linear dimmer

·Diameter of lens: 180mm

·Materials of lens: glass

Light Output

·Luminous flux: 2190lm

·Illuminance: 62000Lux (1m 15°), 11100Lux (1m 60°)

·Optimal projection distance: 4-10m

Control

·Control mode: DMX-512; Auto run

·DMX channel: 2CH, 3CH

·Display of control panel: small blue LCD display + 4 buttons

·Noise: under 45db

Power Supply

·Related voltage: AC100V-240V, 50/60Hz

·Related power: 400W

Construction

·Body dimension: D486*W250*H276mm

·Net weight: 8.5kg

·Shell color: black

·Shell material: aluminium die casting

Working Environment

·Working temperature: -25-40℃

·Cooling: Copper tube radiator and mute fan

·Protection rating: IP20

Standard Configuration Spare Part List

·Cable: 1pc 3-pin DMX cable, 1pc power cable with plug(America standard, Euro standard, or other standard)

·User manual: English version user manual

Optional Configuration Spare Parts List

·Clamps: different style clamps optional (choose from VanGaa homepage “Accessaries series”)

·Safety rope: different size safety ropes optional (choose from VanGaa homepage “Accessaries series”)

Selling Maintain Spare Parts List

·Switching power supply: VG-FL300W-D-P

·LED lamp board: VG-FL300W-D -L

·Main board: VG-FL300W-D-M

·Drive board: VG-FL300W-D-D
