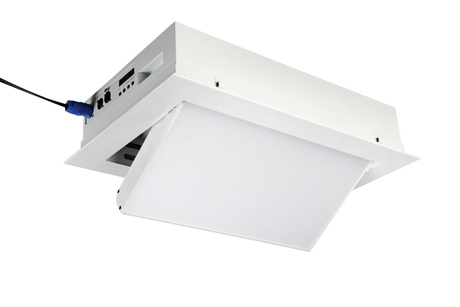

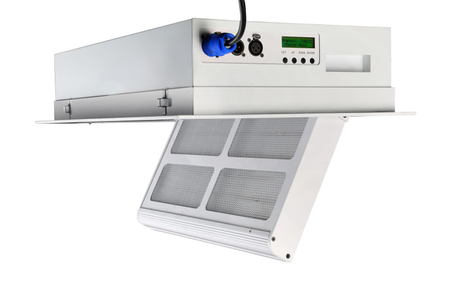

Embedded Electric Flip LED Tricolor Conference Light
Technical Specification
Embedded Electric Flip LED Tricolor Conference Light
Based on the LED Film and Television Flat Light, using high brightness SMD LED chips beads matrix arrangement of large area, through the whole aluminum shell to realize heat dissipation naturally. This light has high brightness, good head dissipation, ultra-quiet and other features. It can satisfy the requirement of indoor and outdoor movie filming for the lighting layout. It is a good substitute of the traditional three basic colors light.
Features
The light’s lighting function is controlled by DMX-512, very convenient;
Using bead LED chips, pure color temperature, can realize 0-100% dimmer;
The light body adopts outside frame design, the modeling is beautiful, installation very convenient, safe and reliable.
Technical Specifications
Light Sources
LED: 1200pcs 0.2W high CRI and high brightness LED bead chips
Lifespan: 50,000hours
Color: WW to CW
Optics
Beam angle: 120degree
Overturn angle: 0-60degree
Dimmer: 0~100% linear dimmer
Light Output
CRI: Ra≥95
Color temperature: 3200K-5600K
Light output power: 150-140W
Control
DMX channel: 4CH
Control mode: DMX-512, Demo mode, Manual
Control panel: LCD display + 4 buttons
Power Supply
Related voltage: AC100V-240V, 50/60Hz
Related power: 200W
Construction
Hole dimension: 580*360mm
Body dimension: D635*W390*H130mm
Net weight: 12.5kg
Shell color: white
Housing material: aluminum alloy
Working Environment
Working temperature: -25-40℃
Cooling: aluminum radiator and light body
Protection rating: IP20
Spare Parts
Cable: 1set DMX in and DMX out signal cable, and 1set Power in and Power out power cable with plug [standard configuration]
Light visor: 1pc light visor [optional configuration]
Package
Carton board box package size: 685*430*260mm(1pc/carton)
N.W/G.W: 12.5kg/14kg
Carton board package size: 680*410*420mm(2pc/carton)[f: 21-05-19]
N.W/G.W: 25kg/27.5kg
Selling Maintain Spare Parts List
Switching power supply: VG-HTC490D-P
LED lamp board: VG-HTC490D-L
Main board: VG-HTC490D-M
Drive board: VG-HTC490D-D
Installation Diagram
Lux Chart
Download
Effect
Information | |
Light source | 1200pcs 0.2W high CRI and high brightness LED bead chips |
Color temperature | 3200K-5600K adjustable |
Beam angle | 120° |
Overturn angle | 0-60degree |
CRI | Ra≥95 |
DMX channel | 5CH RDM; DMX-512 |
Related power | 200W AC100-240 V, 50/60 Hz |
Body dimension | D635*W390*H130mm/25” x15.35” x 5.12” |
Net weight | 12.5kg/27.56 lbs |
Designed for Conference Light
Based on the LED Film and Television Flat Light, using high brightness SMD LED chips beads matrix arrangement of large area,through the whole aluminum shell to realize heat dissipation naturally. This light has high brightness, good head dissipation,ultra-quiet and other features. It can satisfy the requirement of indoor and outdoor movie filming for the lighting layout. It is a good substitute of the traditional three basic colors light.
2 Using bead LED chips, pure color temperature, can realize 0-100% dimmer;
3 The light body adopts outside frame design, the modeling is beautiful, installation very convenient, safe and reliable;
4 High power output, every color can keep output 150W;
5 3200-5600K color temperature
* LED: 1200pcs 0.2W high CRI and high brightness LED bead chips
* Lifespan: 50,000hours
* Color: WW to CW
Optics
* Beam angle: 120degree
* Overturn angle: 0-60degree
* Dimmer: 0~100% linear dimmer
Light Output
* CRI: Ra≥95
* Color temperature: 3200K-5600K
* Light output power: 150-140W
* DMX channel: 5CH
* Control mode: DMX-512, Demo mode, Manual
* Control panel: LCD display + 4 buttons
* Related voltage: AC90V-240V, 50/60Hz
* Related power:200W
* Hole dimension: 580*360mm
* Body dimension: D635*W390*H130mm
* Net weight: 12.5kg
* Shell color: white
* Housing material: aluminum alloy
* Working temperature: -25-40℃
* Cooling: aluminum radiator and light body
* Protection rating: IP20
* Cable: 1set DMX in and DMX out signal cable, and 1set Power in and Power out power cable with plug [standard configuration]
* Light visor: 1pc light visor [optional configuration]
* Carton board box package size: 685*430*260mm(1pc/carton)
* N.W/G.W: 12.5kg/14kg
* Carton board package size: 680*410*420mm(2pc/carton)[f: 21-05-19]
* N.W/G.W: 25kg/27.5kg
