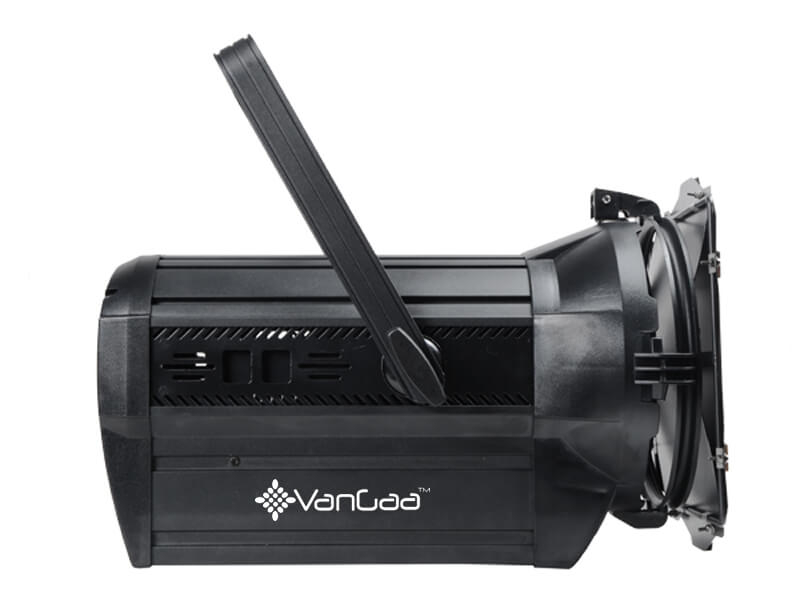

High Lumen 100W Led Fresnel Light for Art Studio

High Lumen 100W Led Fresnel Light for Art Studio

Impeccable Color Fidelity: CRI 95+ TLCI 95+ Offers Natural, Pristine Color for Broadcast Video, Photography, Television Production and Studio Filmmaking; Color Temperature range of 3200K-5600K, allowing you to produce light that is warmer than typical tungsten fixtures, and cooler than conventional daylight.

• This television projector light equips high power 200W LED lamps as the light source, it’s energy saving. And it uses high efficiency optical lens, light soft. It’s a best choice for film and television performances, studio and other places.

Features

• The internal adopts full copper radiator large area, good heat dissipation, ensure the lifespan of the LED Lamps;

• Through efficient optical lenses, with special heat dissipation design, make the light is downy, small stray light, no glare, eyes more comfortable;

• Use the LED video projector scheme, the light energy saving 80%;

• Because of almost no infrared radiation, it has greatly improve work environment.

Technical Specifications

Light Sources

• LED: 1pc 200W Bi color COB LED Lamps

• Lifespan: 500,000h

• Color: from CW to WW, 3200K-5600K adjustable

Optics

• Beam angle: 15-60degree

• Dimmer: 0-100% linear dimmer

• CRI: Ra>93/95/97

• Color temperature: 3200K-5600K

Light Output

• Luminous flux: 9775.3lm

• Illuminance: 2700 Lux (6m 15°)

• Optimal projection distance: 5-30m

Control

• Control mode: DMX-512; Auto run

• DMX channel: 4CH, 5CH

• Color control: fixed 3200K, 4500K, 5600K

• Display of control panel: LCD display + 4 buttons

Power Supply

• Related voltage: AC100V-240V, 50/60Hz

• Related power: 150W

Construction

• Body dimension: D455*W265*H292mm

• Net weight: 8.5kg

• Shell color: black

• Shell material: aluminium die casting

Working Environment

• Working temperature: -25-40℃

• Cooling: copper tube convector + mute fan

• Protection rating: IP20

Standard Configuration Spare Part List

• Cable: 1pc 3-pin DMX cable, 1pc power cable with plug(America standard, Euro standard, or other standard)

• Barn door: 1pc stand barn door

• User manual: English version user manual

Optional Configuration Spare Parts List

• Clamps: different style clamps optional (choose from VanGaa homepage “Accessaries series”)

• Safety rope: different size safety ropes optional (choose from VanGaa homepage “Accessaries series”)

• Stand: 1.5m hand change stand, 2.4-4m hand change stand

Package

• Carton board package size: 570*360*390mm(1pc/carton) [c:22-01-19]

• N.W/G.W/V.W: 9kg/11kg/17kg

• Flight case package size: 745*640*650(4pcs/flight case)

• Net weight of flight case: 30kg

• N.W/G.W/V.W: 34kg/64kg/63kg

• Flight case package size: 985*640*650(4pcs/flight case)(with clamps space)

• Net weight of flight case: 32kg

• N.W/G.W/V.W: 34kg/66kg/82kg

• Flight case package size: 1120*920*560(6pcs/flight case, oversized)(without clamps space)

• Net weight of flight case: 37kg

• N.W/G.W/V.W: 51kg/87kg/116kg

• Flight case package size: 1180*900*550(6pcs/flight case, oversized)(without clamps space) [c:18-05-20]

• Net weight of flight case: 38kg

• N.W/G.W/V.W: 51kg/88kg/117kg

• Flight case package size: 1120*920*740(6pcs/flight case, oversized)(with clamps space)

• Net weight of flight case: 43kg

• N.W/G.W/V.W: 51kg/94kg/151kg

Selling Maintain Spare Parts List

• Switching power supply: VG-PB200W-C-P

• LED lamp board: VG-PB200W-C -L

• Main board: VG-PB200W-C-M

• Drive board: VG-PB200W-C-D
